JHM 2-Piece Front Rotor Set (350x32mm) - VW / Mk5 GTI / R32 / Mk6 Golf / GTI / Golf R W/ Cayenne Caliper (18z)

PROUDLY DESIGNED AND BUILT IN THE USA

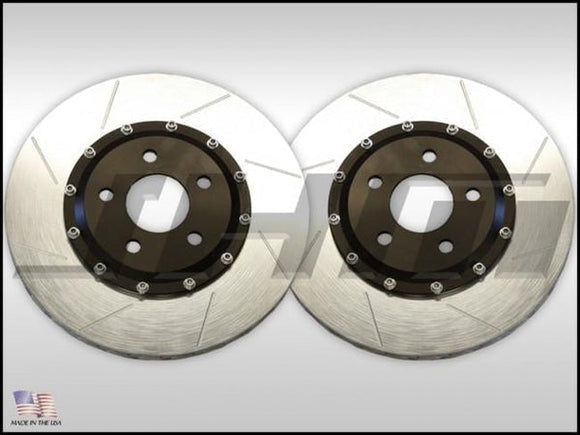

**NOTE: As of 8/1/2012, all JHM Lightweight Rotors will now look like the picture below!!!***

Click to enlarge picture


Due to popular demand, all of our 2-piece, lightweight rotors will now come with black anodized rotor hats featuring Type 3, hard anodizing, the highest quality and hardest anodizing available for aluminum. This will make the rotor hats more resistant to fade and wear and will hide brake dust better. Due to popular, demand all lightweight rotor rings will also feature zinc plating. This high quality coating will slow the effects of corrosion and keep your rotor rings looking good through the winters.

IN STOCK AND READY TO SHIP!

FINALLY a low cost front BBK (Big Brake kit) solution for your MKV MKVI that uses the popular Porsche Cayenne caliper (6-piston Brembo) while clearing most OEM 18" wheels and most aftermarket 18" wheels as well.

Click to enlarge picture

-Rotor Weight: Stock = JHM = 17lbs(each)
-Rotor Cooling Air-gap: JHM = 18.5mm(.728")
-Rotor Cooling Center Fin Design: Stock = Straight Fin, JHM = Airfoil - MORE EFFICIENT for better cooling
-Bolt pattern: - SAME (fits like an OEM rotor would)

Why the Porsche Cayenne caliper? With its 6-piston design and MASSIVE brake pads it is a strong performer. Also it bolts right up to your spindles with NO brackets. All you need is some bolts, nuts, brake lines and JHM rotors and you have a 350mm BBK. Being that it is an OEM part they are readily available and can be found used for great prices.

INSTALLATION NOTES --> CLICK HERE

INCLUDES: 2 x JHM 2-piece Lightweight Slotted Front Rotors and 2 x rotor hat to hub adpaters that MUST be installed between the rotor hat and hub BEFORE putting the rotor on.

HOW TO MAKE THIS ROTOR WORK WITH THE CAYENNE or TOUAREG 17Z CALIPER:

1. Buy SBLK1500 stainless brake lines from JHM to connect the cayenne caliper to your factory lines.
2. Buy BTKPorscheC bolt kit for cayenne calipers with adapter bushings to connect the cayenne caliper to your spindle. (they need to be installed in a specific way, see pic in zip below)
3. Buy 350mm cayenne brake bads, just search cayenne 350mm on our site, we have several options.
4. Buy 7L0907637 sensor for brake pad sensor system to work
5. Buy a pair of new or used 18z Cayenne, Touareg or Q7 calipers

Outer ring specs:
We worked closely with a race brake manufacturer that supplies many NASCAR racers and a couple major brake kit companies. Due to their expertise we chose to have them build us the outer rings to our specs to fit the B6-B7 S4-A4 with a Cayenne caliper bolted on. 12 attachment points for durability and strength.

Center hat specs:
We CNC machine the Aluminum center hats in house based on their recommended materials and thicknesses for durability. 12 attachment points for durability and strength. We also engrave JHM in them in 3 locations equal from each other, it looks clean and doesn't jump out or look tacky.

Click to enlarge picture

Note - This brake upgrade only fits under 17" wheels or larger. May need wheel spacers with some wheels.
