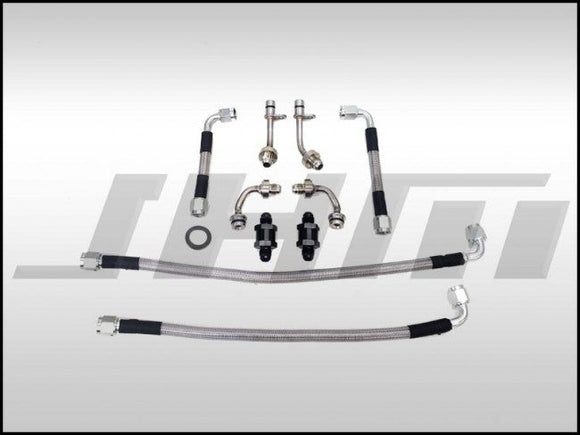

Stainless Braided Turbo Oil Line and Strainer/Screen Relocation Kit (JHM-Serviceable) for TSB-2044640 on C7 S6-S7-RS7 and D4 A8-S8 4.0T

JHM Stainless Braided Turbo Oil Line and Strainer/Screen Relocation Kit (Serviceable) for C7-D4 4.0T is now available!

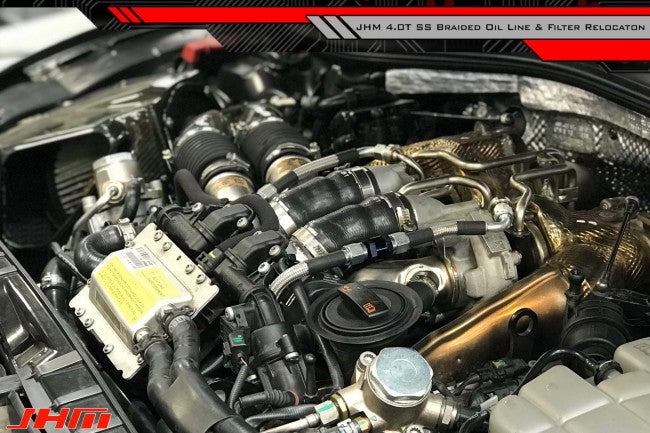

We are pleased to offer our JHM Stainless Braided Turbo Oil Line and Strainer/Screen Relocation Kit. This product was designed to make your life easier, save you money over the long run, and help keep your turbos alive.  This is the solution to the pesky OEM Oil Strainer/Screen that gets clogged over time which inevitably starves your turbos of oil (TSB-2044640). When your turbos are starved of oil they will fail which will cost you thousands of dollars to replace. With our JHM Stainless Braided Turbo Oil Line and Strainer/Screen Relocation Kit, you no longer use the factory Oil Strainer/Screen (079115175G) and instead uses two oil screen filters that are relocated on top of the motor where they are easy to get to and can be serviced as often as you like! To replace your OEM Oil Strainer/Screen is a lengthy process which requires you to put your vehicle into service position, remove the throttle bodies, intercooler, bi-pipes, oil separator, etc. just to get to the screen.  With our kit, you only have to perform this job ONCE saving you this costly service every time you want to clean your filters. This is a No-Brainer upgrade.

100% BOLT IN - NO CUTTING OR MODIFICATIONS TO YOUR CAR REQUIRED!

COMPATIBLE WITH FACTORY AND UPGRADED TURBOS THAT RETAIN THE USE OF THE OEM OIL FEED LINES

Features:

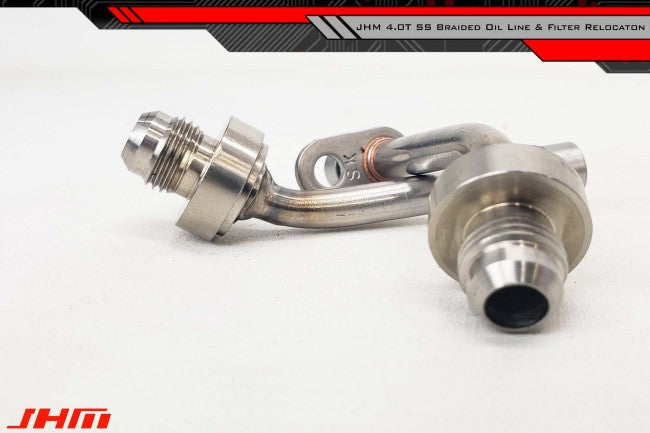

• High-Quality 304 Stainless Steel Fittings
• High-Quality 304 Stainless Steel Braided Lines

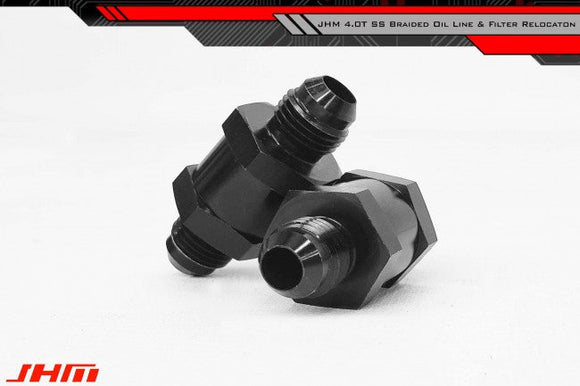

• High-Quality Aluminum Oil Screen Housings
• High-Quality Oil Strainer/Screens (Factory Matched Micron)
• High-Quality Delrin Strainer Blank
• High-Quality Velcro Heat Sleeve

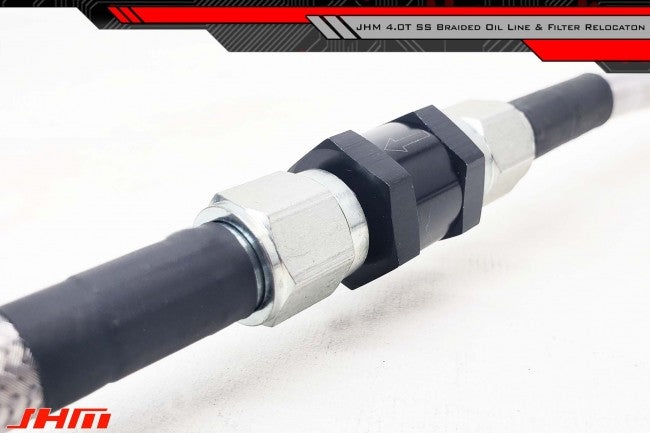

Our filters feature a dome-shaped design that not only increases the surface area of the strainer but also helps prevent complete clogging of the strainer as the OEM strainer is known to do. Instead, if the filter has been neglected it will push debris in the oil down and off to the side which will still allow the oil to flow through the strainer.

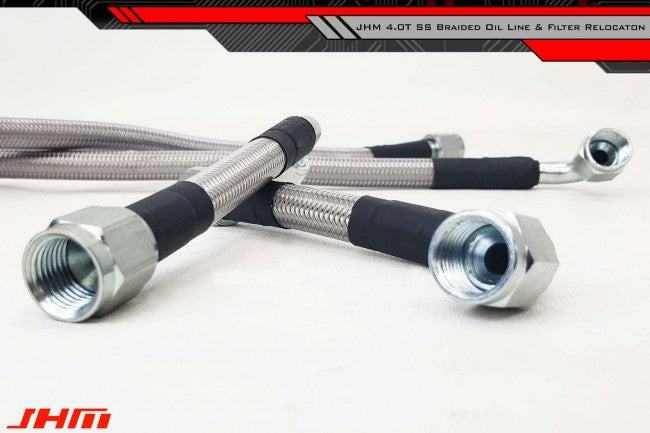

Our lines are made of the finest PTFE hose and permanently crimped-on zinc plated steel fittings. Our lines are made with an extruded PTFE core and a stainless steel wire braided cover. For added protection against abrasion and corrosion, all of our lines feature a clear PVC outer cover.  Other colors may be available in the future.  Note: The clear PVC Cover can develop a slight yellow tint over time due to engine temps. This is not an issue and does not affect the abrasion resistance of the PVC.

 Line Installation Video
