K&N 2016-2017 Ford Focus RS 2.3L Typhoon Short Ram Intake

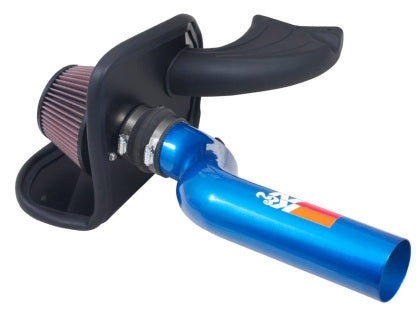

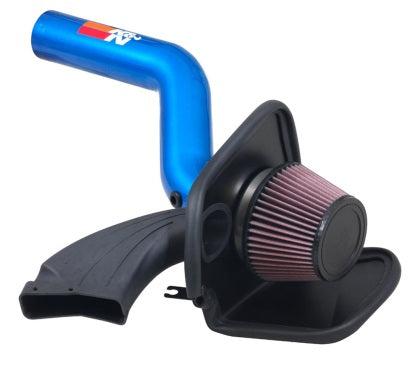

The K&N 69-3539TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothens and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-3539TB air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs using the factory mounting locations. A molded scoop funnels outside air towards the filter. Air is then directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive blue powder-coat finish to match the car's badging and it accommodates the factory air pressure sensor. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Installation can be done using common tools.

• Guaranteed to increase horsepower
• Designed to improve throttle response and engine sound
• Low restriction aluminum tube
• Easy to install, usually in 90 minutes or less
• Filter lasts up to 100,000 miles before service is required
• Replaces stock air intake system
• Washable and reusable lifetime air filter
• K&N Million Mile Limited Warranty

Estimated Horsepower Gain	33.01 HP @ 4904 RPM
Replacement Filter	RU-5163
Air Filter Color	Red
Air Filter Material	Cotton Gauze
Air Filter Outlet Shape	Round
Clamps Included	3
Clamp Material	Stainless Steel
Clamp Style	Worm Gear
Couplers Included	1
System Type	Complete Cold-Air Intake System
Estimated Torque Gain	31.4 lbft
Product Style	69 Series Typhoon Kits
Intake Pipe Color / Finish	Candy Blue Powder Coating
Intake Pipe Material	Aluminum
CARB EO Number	D-269-70
Street Legal In All US States	Legal for use in all 50 states.
TUV Approved (Europe)	No
Weight	9.4 lb (4.3 kg)
Product Box Height	12.5 in (318 mm)
Product Box Length	22.25 in (565 mm)
Product Box Width	14.25 in (362 mm)
Mounting Hardware Included	Yes
Warranty	No-Hassle Lifetime Limited

2018 Ford Focus RS 2.3L L4 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-269-70

2017 Ford Focus RS 2.3L L4 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-269-70

2016 Ford Focus RS 2.3L L4 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-269-70
