K1 Technologies 6.125 LS1 Chevy H Beam w/ARP2000 (8)

K1 Technologies 6.125 LS1 Chevy H Beam w/ARP2000 (8)

$1,074.99 CAD

K1 Technologies SKU: kot012AE25613

Earn [points_amount] when you buy this item.

Description Availability

kot012AE25613

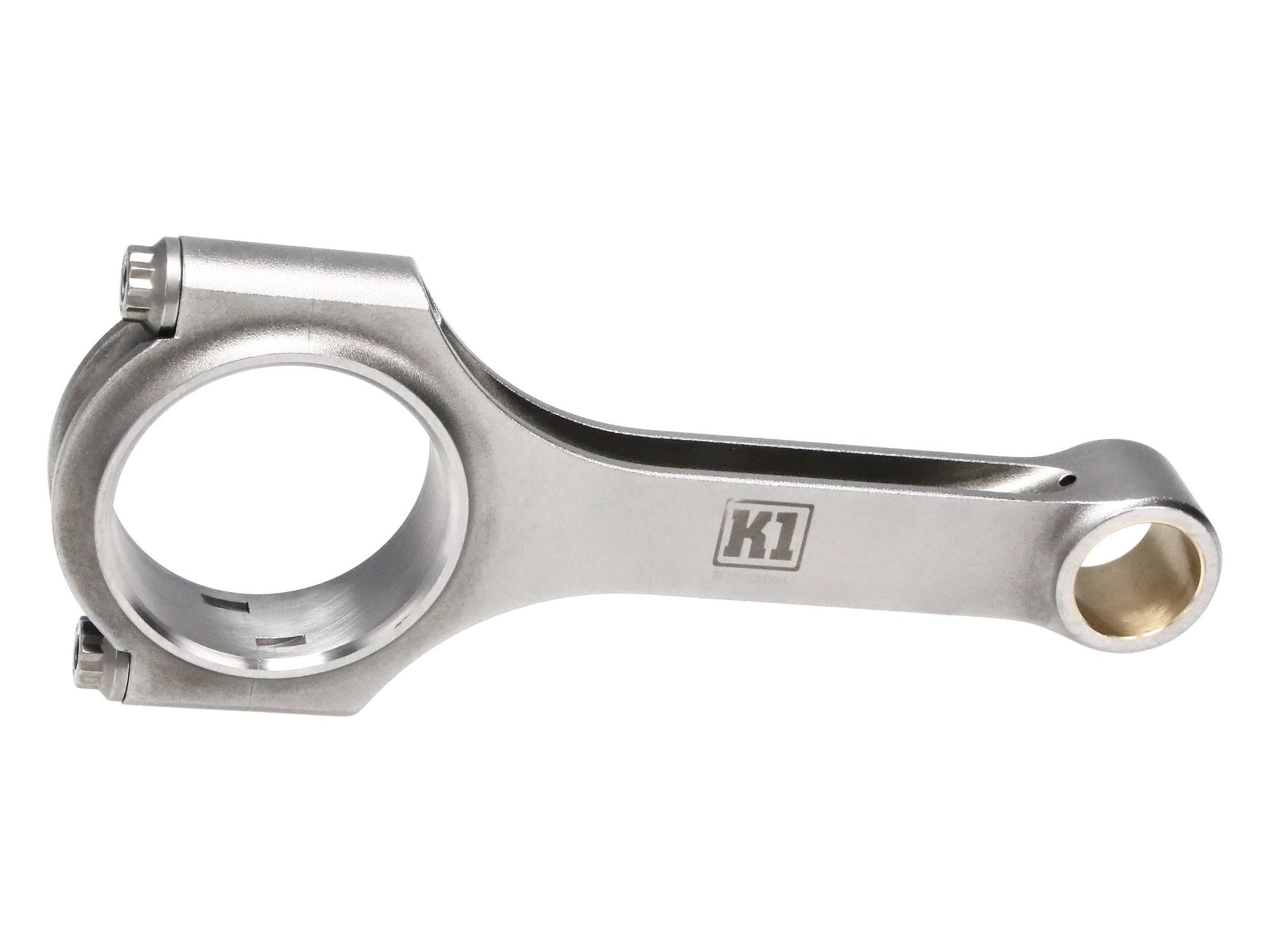

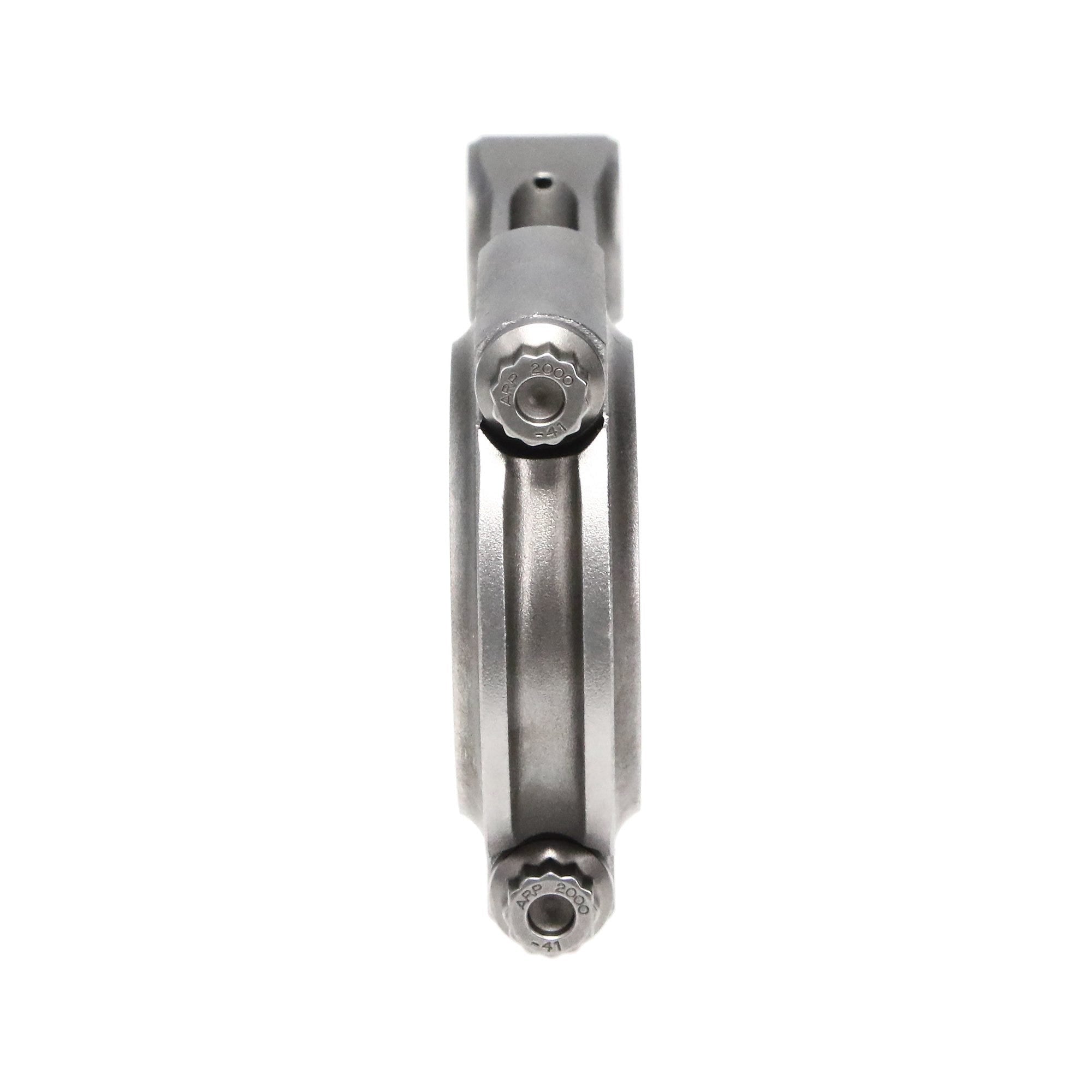

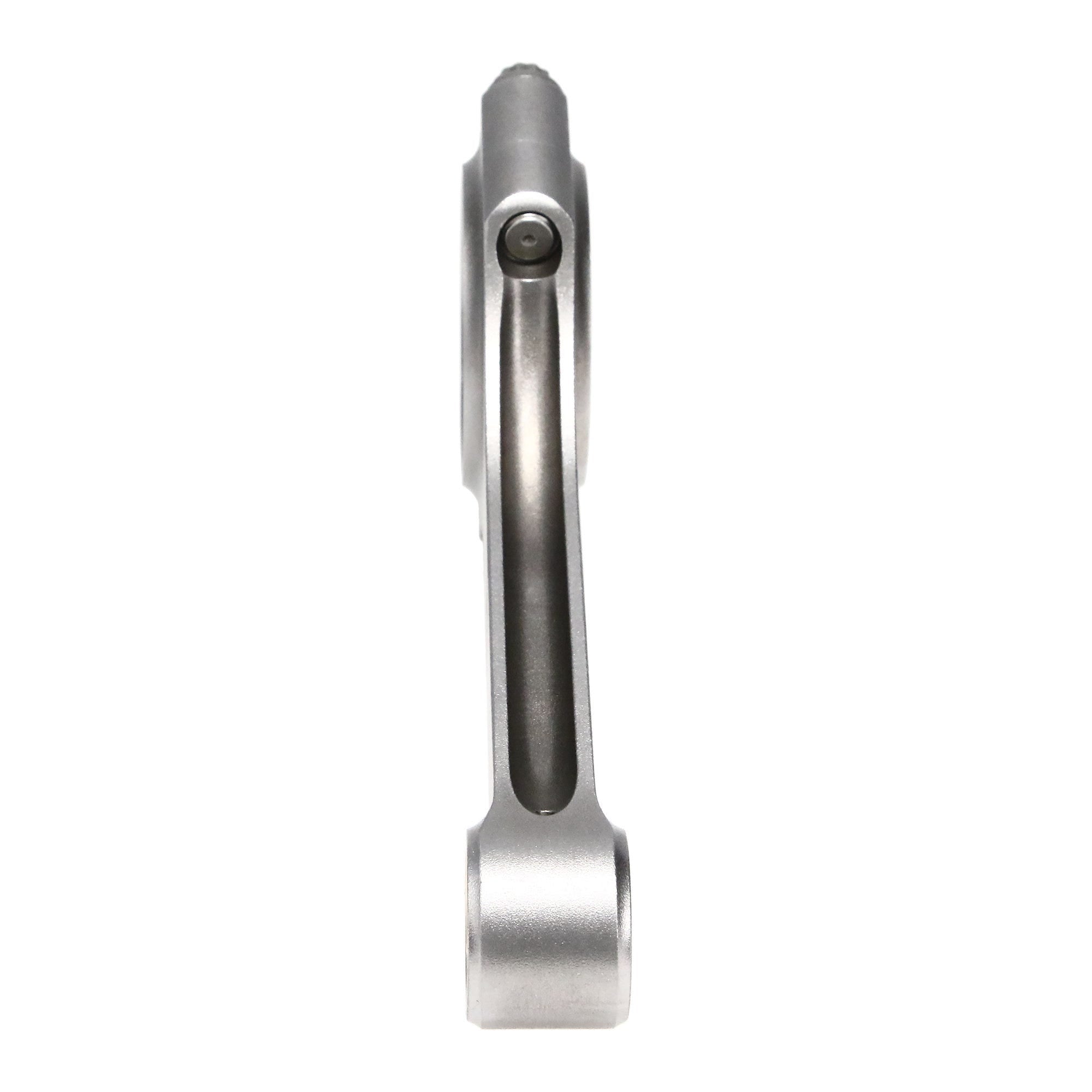

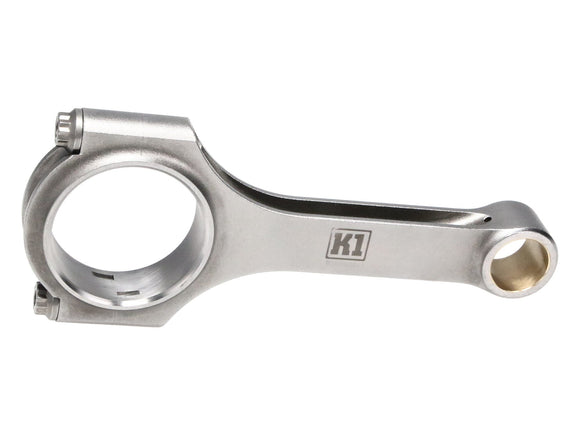

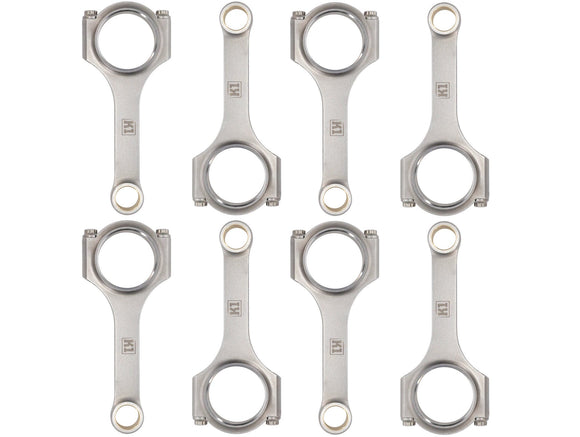

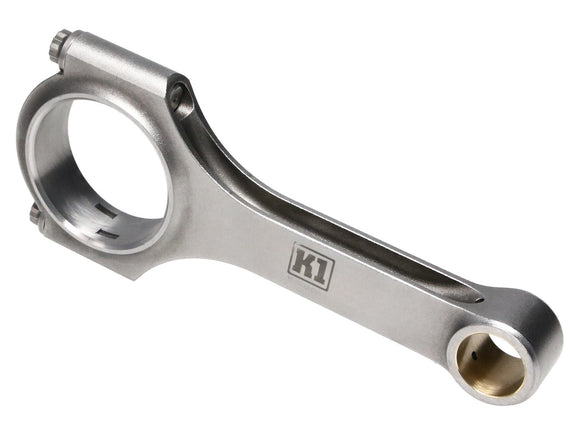

K1 Technologies Chevrolet LS Connecting Rod Set, 6.125 in. Length, 0.927 in. Pin, 2.225 in. Journal, 7/16 in. ARP 2000 Bolts, Forged 4340 Steel, H-Beam, Set of 8.

Notice:  Product Images may differ from the actual product.  Image may be a representation of this item.

Bolt Diameter 7/16
Bolt Part Number BT71401-S
Connecting Rod Finish Shot-peened
Lightened No
Main Bearing Bore Diameter 2.225
Main Bearing Width 0.940
Material Forged 4340 Steel
Mounting Hardware Included Yes
Product Types Engine Connecting Rod Set
Rod Length 6.125
Rod Quantity 8
Rod Type H-Beam
Weight Matched Set Yes
Wrist Pin Diameter 0.927
Wrist Pin Journal Bushing Width 1.010
Wrist Pin Style Floating

K1 Technologies connecting rods are manufactured with optimized strength and weight characteristics in mind to deliver reliable performance. Forged from 4340 steel, K1 rods featured a shot-peened surface finish which smooths surface blends and reduces potential stress profiles. K1 connecting rods are held to strict quality standards and undergo magnetic particle testing to ensure material properties are free of flaws. Each rod is also subject to bore tolerance compliance, holding them to +/- .0001” after finishing. Additionally, K1 rods are balanced and tested to be within +/- 1 gram per end. A dual-ribbing design on the rod caps of K1 connecting rods helps maximize strength and allows the rod big end to maintain roundness as engine RPMs increase. Full-floating, precision-honed bronze bushings are fixed into the small ends of the rods for low friction and high wear resistance. Fitted with ARP 2000 rod bolts rated at 200,000 psi tensile strength for most applications, K1 connecting rods deliver an industry-leading combination of strength and value.
