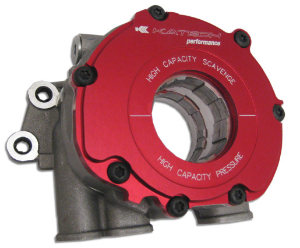

KATECH KAT-A5069-LS9 - HIGH CAPACITY SCAVENGE. HIGH CAPACITY PRESSURE. PORTED OI

Part Number KAT-A5069-LS9

Direct replacement oil pump for LS7 and LS9 engines (also fits dry sump LS3s)
30% greater scavenge capacity (click image for data)
20% greater pressure capacity
CNC ported
Blueprinted to precise tolerances, documented and serialized
Red anodized finished with laser-etched Katech
Performance logo
Pre-lubed
2006-2008 LS7 requires a change to the 2009 crank sprocket (12622539) when using the Katech red pump. Failure to change the crank sprocket will result in oil pump binding and will not be covered under warranty.

This pump is designed for engines with higher oil flow demands such as looser bearing clearances, aftermarket lifters, piston squirters or oil-fed turbos/superchargers. Otherwise, the blue pump is recommended.
