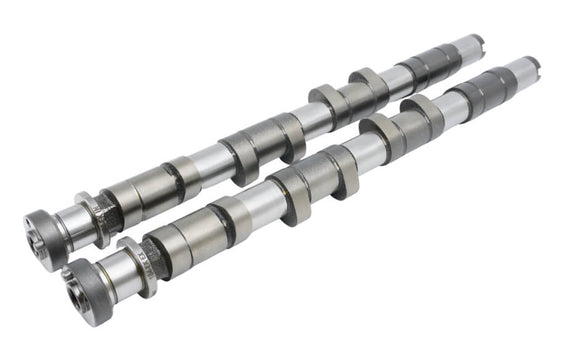

184-EK
Naturally aspirated track and drag racing cams to suit professionally built engines running on race fuel. Great with stroker kits and ITB intake. Ideal in a lightweight car with close ratio gears. Not for street cars. Cams will pull to around 10k+ rpm. Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass. Kelford Cams recommend KVS10-BT valve spring kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR16VE/SR20VE
184-EK
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
8.33mm
EXHAUST:
7.63mm
ROCKER RATIO:
INTAKE:
1.6
EXHAUST:
1.6
NETT VALVE LIFT:
INTAKE:
13.00mm
EXHAUST:
11.80mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
318°
EXHAUST:
308°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
274°
EXHAUST:
258°
TIMING AT
1.00mm VALVE LIFT
IVO:
36° BTDC
IVC:
58° ABDC
EVO:
47° BBDC
EVC:
31° ATDC
SUGGESTED CENTRELINES:
INTAKE:
101°
EXHAUST:
98°
LIFT AT TDC
VALVE
INTAKE:
5.05mm
EXHAUST:
4.52mm
