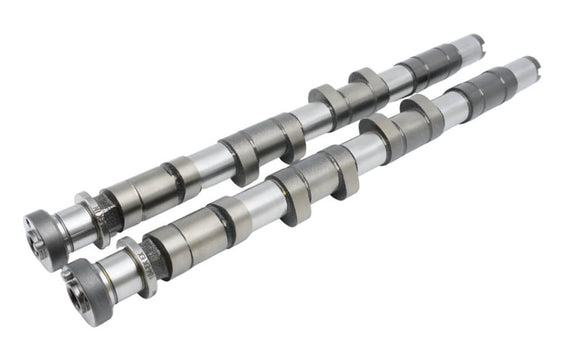

KELFORD NISSAN SR16VE / 20VE TURBO DRAG CAMS

KELFORD NISSAN SR16VE / 20VE TURBO DRAG CAMS

$1,900.08 CAD

Kelford Cams SKU: KEL184-TK

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

184-TK

Drag racing cams to suit high rpm turbocharged 700hp-1000hp+ SR16VE/SR20VE engines. Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass. Suits 67mm+ turbo. Great with alcohol based fuels. 10k+ rpm. Kelford Cams recommend KVS10-BT valve spring kit.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR16VE/SR20VE
184-TK
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
7.33mm
EXHAUST:
7.42mm
ROCKER RATIO:
INTAKE:
1.6
EXHAUST:
1.6
NETT VALVE LIFT:
INTAKE:
11.40mm
EXHAUST:
11.40mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
292°
EXHAUST:
308°
DURATION AT
1.00mm LIFT
INTAKE:
250°
EXHAUST:
256°
TIMING AT
1.00mm LIFT
IVO:
17° BTDC
IVC:
53° ABDC
EVO:
64° BBDC
EVC:
12° ATDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
2.79mm
EXHAUST:
1.74mm
