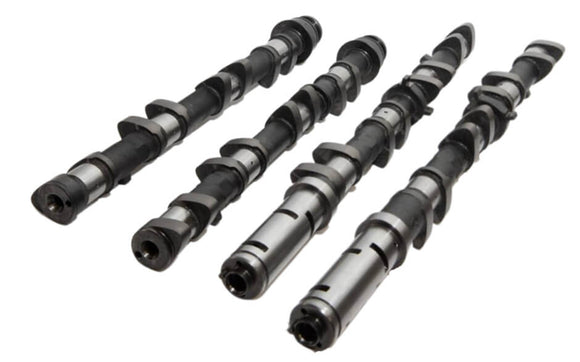

KELFORD 1UZ-3UZ VVTI PERFORMANCE CAMS (SERIOUS TURBO)

KELFORD 1UZ-3UZ VVTI PERFORMANCE CAMS (SERIOUS TURBO)

$2,660.13 CAD

Kelford Cams SKU: KEL208-T

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

208-T

Serious Turbo camshafts for 1UZ / 3UZ engine producing 750+hp. Great with the use of E85. Spring upgraded needed, Kelford Cams KVS208 is required when using more than 30+ psi of boost and 8000rpm.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZ-3UZ VVTi
208-T
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.35mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.85mm
EXHAUST:
10.95mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.60mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
265
EXHAUST:
270
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232
EXHAUST:
238
TIMING AT
1.00mm VALVE LIFT
IVO:
34 BTDC
IVC:
18 ABDC
EVO:
53 BBDC
EVC:
5 ATDC
SUGGESTED CENTRELINES:
INTAKE:
82
EXHAUST:
114
LIFT AT TDC
VALVE
INTAKE:
4.93mm
EXHAUST:
1.50
