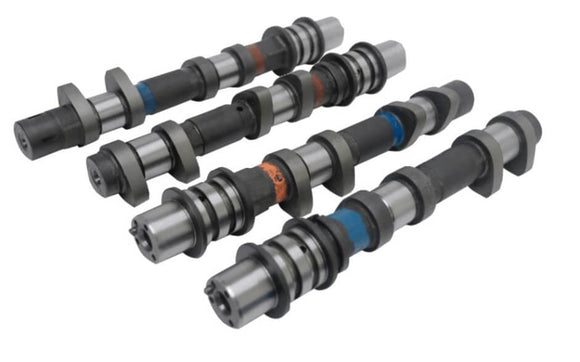

KELFORD SUBARU EJ257B 2008 STI STAGE 1 PERFORMANCE CAMSHAFTS

KELFORD SUBARU EJ257B 2008 STI STAGE 1 PERFORMANCE CAMSHAFTS

$1,821.31 CAD

Kelford Cams SKU: KEL220-B

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

220-B

Subaru EJ257B High Lift 264° Race and Rally camshafts. Great throttle response and improved mid-range power. Suits turbo sizing 54-60mm. Kelford Cams recommend valve spring upgrade KVS1847-BT.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Subaru
EJ20/25 Dual-AVCS
220-B
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.90mm
EXHAUST:
10.45mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.70mm
EXHAUST:
10.20mm
ADVERTISED DURATION AT
0.25mm
INTAKE:
264°
EXHAUST:
260°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
225°
EXHAUST:
222°
TIMING AT
1.00mm VALVE LIFT
IVO:
17.5° ATDC
IVC:
62.5° ABDC
EVO:
57° BBDC
EVC:
15° BTDC
SUGGESTED CENTRELINES:
INTAKE:
130°
EXHAUST:
126°
LIFT AT TDC
VALVE
INTAKE:
0.03mm
EXHAUST:
0.07mm
