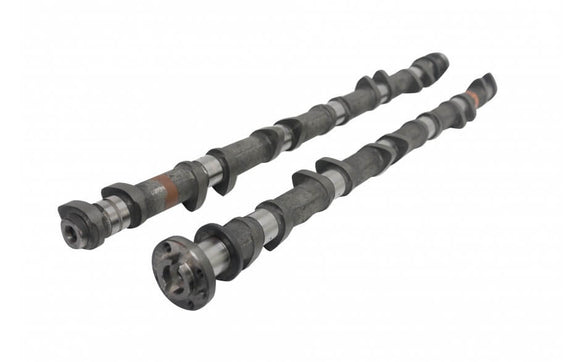

KELFORD NISSAN TB48 HIGH PERFORMANCE CAM SET

KELFORD NISSAN TB48 HIGH PERFORMANCE CAM SET

$1,681.75 CAD

Kelford Cams SKU: KEL223-C

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

223-C

286° Stage 2 NA cams to suit performance naturally aspirated TB48DE engines. Improved high rpm power. Retains NVCS / N-VCT variable intake cam timing. Kelford Cams recommend KVS04 valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-C
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.05mm
EXHAUST:
11.05mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.80mm
EXHAUST:
10.75mm
ADVERTISED DURATION AT

INTAKE:
286°
EXHAUST:
286°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
244°
EXHAUST:
244°
TIMING AT
1.00mm VALVE LIFT
IVO:
4° ATDC
IVC:
68° ABDC
EVO:
52° BBDC
EVC:
12° ATDC
SUGGESTED CENTRELINES:
INTAKE:
126°
EXHAUST:
110°
LIFT AT TDC
VALVE
INTAKE:
0.67mm
EXHAUST:
2.26mm
