223-D

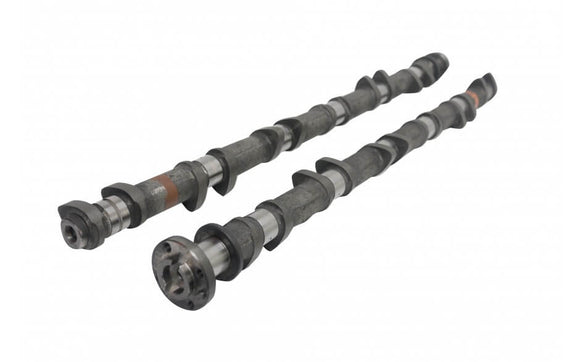

308°/294° Stage 3 NA cams to suit extremely modified naturally aspirated drag racing engines. Suits engines with ported heads, bigger valves and high flow intake and exhaust system. Stroker bottom end with high compression pistons. Fuel type ethanol blend or methanol. Can retain NVCS / N-VCT variable intake cam timing with careful checking. Kelford Cams recommend KVS04 valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-D
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
12.35mm
EXHAUST:
12.10mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
12.10mm
EXHAUST:
11.80mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
308°
EXHAUST:
294°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
264°
EXHAUST:
256°
TIMING AT
1.00mm VALVE LIFT
IVO:
6° BTDC
IVC:
78° ABDC
EVO:
54° BBDC
EVC:
22° ATDC
SUGGESTED CENTRELINES:
INTAKE:
126°
EXHAUST:
106°
LIFT AT TDC
VALVE
INTAKE:
EXHAUST:
3.65mm
