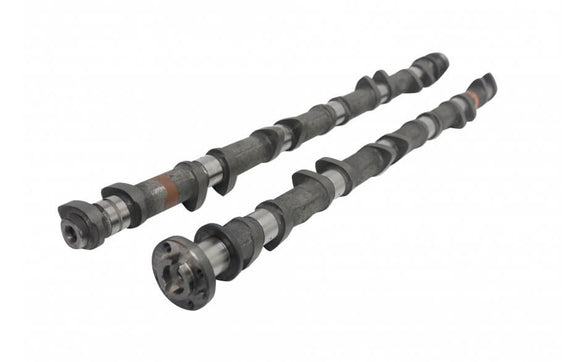

KELFORD NISSAN TB48 TURBO HIGH PERFORMANCE CAM SET

KELFORD NISSAN TB48 TURBO HIGH PERFORMANCE CAM SET

$1,681.75 CAD

Kelford Cams SKU: KEL223-T1

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

223-T1

278° Stage 2 Turbo cams for motorsport applications. More suited to mid-high rpm power. Designed to suit high HP TB48 competition engines running turbo sizing 70mm+. Retains NVCS / N-VCT variable intake cam timing. Kelford Cams recommend KVS04 valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-T1
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.65mm
EXHAUST:
10.65mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.40mm
EXHAUST:
10.35mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
278°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
238°
EXHAUST:
238°
TIMING AT
1.00mm VALVE LIFT
IVO:
13° ATDC
IVC:
71 ABDC
EVO:
54° BBDC
EVC:
4° ATDC
SUGGESTED CENTRELINES:
INTAKE:
132°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
0.15mm
EXHAUST:
1.42mm
