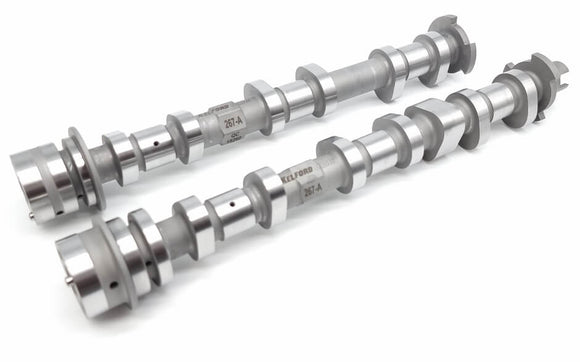

KELFORD TOYOTA GR YARIS PERFORMANCE CAMS

KELFORD TOYOTA GR YARIS PERFORMANCE CAMS

$1,659.63 CAD

Kelford Cams SKU: KEL267-A

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

267-A

Stage 1 G16E-GTS Camshaft. Ideal for Toyota GR Corolla / GR Yaris G16E-GTS engines with turbo upgrade 48-54mm, 350-500hp. Requires valve spring upgrade. Engine speed up to 8000rpm and 30psi boost pressure when matched with our spring kit. Kelford Cams recommend KVS264 spring and retainer kit.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
G16E-GTS
267-A
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
6.63mm
EXHAUST:
6.63mm
ROCKER RATIO:
INTAKE:
1.735
EXHAUST:
1.735
NETT VALVE LIFT:
INTAKE:
11.50mm
EXHAUST:
11.50mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
266°
EXHAUST:
274°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
226°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:

IVC:

EVO:

EVC:

SUGGESTED CENTRELINES:
INTAKE:
vari
EXHAUST:
vari
LIFT AT TDC

INTAKE:

EXHAUST:
