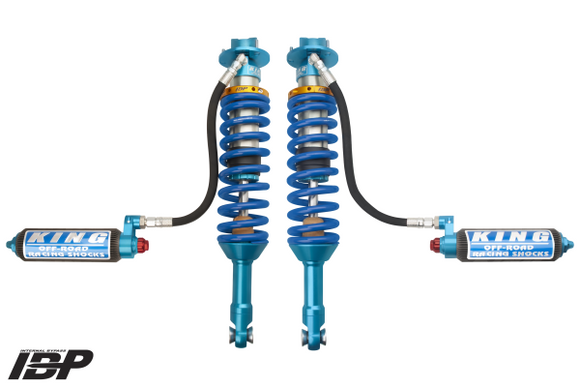

King Shocks 2017+ Ford Raptor 4WD Front 3.0 Dia Remote Perf Fin Res Coilover w/Adj/Int Bypass (Pair)

• Large 3.0 diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• King’s 3.0 IBP Internal Bypass coilover shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock.
• King’s monotube design uses a full diameter piston and standard, full size valving.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Raptor coilovers feature large 3/4” Top Bearing and 1” Lower Bearing for superior strength.
• This is a 100% bolt on installation that requires no cutting or welding to be done to your vehicle.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Raptor.
• Fully rebuildable, serviceable and tunable.
• Standard Option: Finned Reservoir With Compression Adjuster
  • 3.5” OD Pure Race Series External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
  • All new threaded end cap design with new Schrader valve protective cap.
  • Made from extruded 6061-T6 aluminum
  • New improved reservoir mounts. No more hose clamps!
  • New hose attachment at the reservoir allows swivel adjustment of the hose clocking.
  • Comes standard with King’s 3.0 Wide Range Compression Adjuster that gives 30 precise clicks of compression damping adjustment to further refine your ride quality.
  • Reduces shock cavitation

Details
Year Make Model: 2017 Ford F150 Raptor
Year Make Model: 2017 Ford Raptor
Year Make Model: 2018 Ford F150 Raptor
Year Make Model: 2018 Ford Raptor
Year Make Model: 2019 Ford F150 Raptor
Year Make Model: 2019 Ford Raptor
Year Make Model: 2020 Ford F150 Raptor
Year Make Model: 2020 Ford Raptor
Year Make Model: 2021 Ford F150 Raptor
Year Make Model: 2021 Ford Raptor
Year Make Model: 2022 Ford F150 Raptor
Year Make Model: 2022 Ford Raptor
Year Make Model: 2023 Ford F150 Raptor
Year Make Model: 2023 Ford Raptor
Year Make Model: 2024 Ford F150 Raptor
Year Make Model: 2024 Ford Raptor
Year Make Model: 2025 Ford F150 Raptor
Year Make Model: 2025 Ford Raptor
COMP LENGTH (IN): 21.856
DRIVETRAIN: 4WD
EXT LENGTH (IN): 29.050
GAS PRESSURE (PSI): 200.000
STROKE (IN): 7.194
