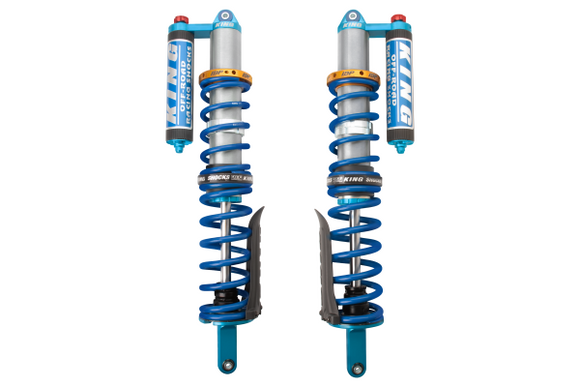

King Shock 2018+ Textron Wildcat XX Rear 3.0 Internal Bypass Piggyback Coilover w/Finned Res. & Adj.

• 100% bolt-on performance.
• Increased wheel travel.
• Adjustable ride height.
• Large 3.0 diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• King’s IBP internal bypass shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock.
• King’s monotube design uses a full diameter piston and standard, full size valving.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your UTV.
• Fully rebuildable, serviceable and tunable.
• Standard Option: Finned Reservoir
  • 2.5” Series External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
  • Increased surface area helps to dramatically dissipate heat.
  • All new threaded end cap design with new Schrader valve protective cap.
  • Made from extruded 6061-T6 aluminum – no sleeve.
• Standard Option: Compression Adjuster
  • Comes standard with King’s 2.5 Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.
  • Reduces shock cavitation.

Details
Year Make Model: 2018 Textron Wildcat XX
Year Make Model: 2019 Textron Wildcat XX
Year Make Model: 2020 Textron Wildcat XX
Year Make Model: 2021 Textron Wildcat XX
Year Make Model: 2022 Textron Wildcat XX
Year Make Model: 2023 Textron Wildcat XX
Year Make Model: 2024 Textron Wildcat XX
Year Make Model: 2025 Textron Wildcat XX
COMP LENGTH (IN): 23.375
EXT LENGTH (IN): 33.250
GAS PRESSURE (PSI): 250.000
STROKE (IN): 9.875
UTV SEAT: 2 SEAT
