447557
Description

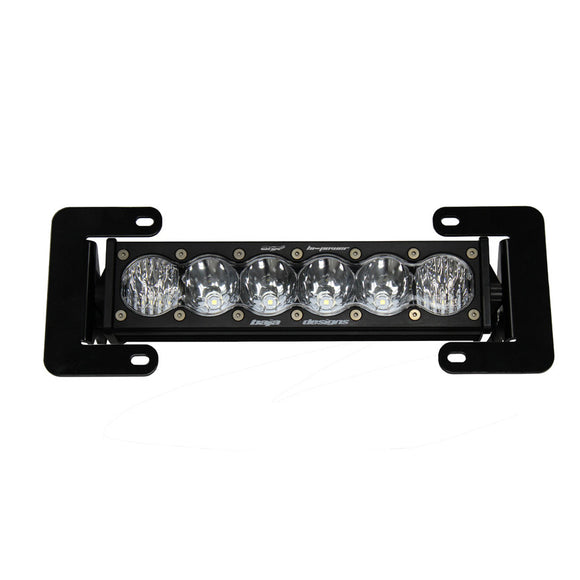

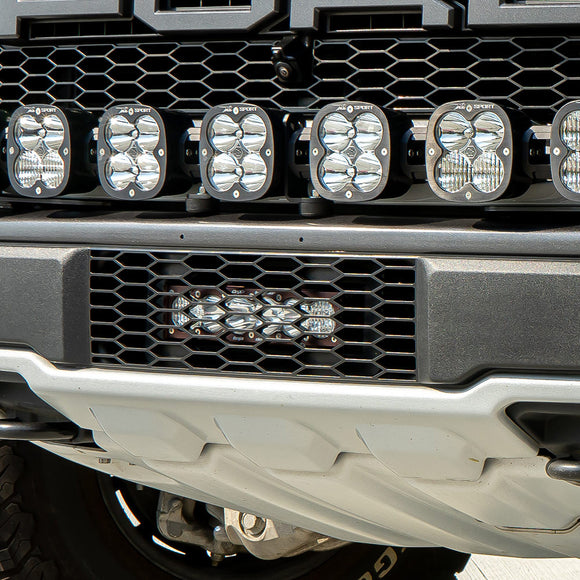

Baja Designs' 2017-2020 Ford Raptor 10 inch OnX6 plus lower grille kit was designed with both functionality and visual appeal in mind. The kit is a quick and easy installed with minimal modifications required. Please note that this kit includes a 10 inch OnX6 plus in a driving combo beam pattern and the brackets will not accept any other light. The included harness will allow you to easily tap your lights into the factory up-fitter switches.
FITS
Ford F-150 Raptor 2017-2020
Detailed Specs
INCLUDED WITH KIT:
SKU: 451003
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
Specifications
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
