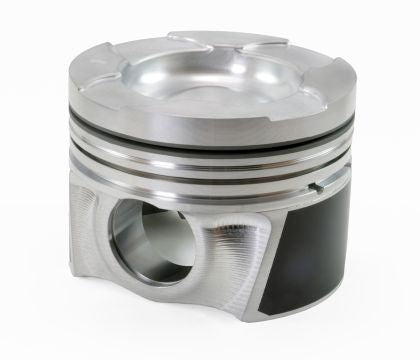

Mahle MS Piston Set Duramax 4.055in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.3 CR Set of 8

Mahle MS Piston Set Duramax 4.055in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.3 CR Set of 8

$3,504.99 CAD

Mahle SKU: mhl930036255

Description Availability

930036255

Mahle MS Piston Set Duramax 4.055in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.3 CR Set of 8

Features:
  • Part Type: Pistons
  • Product Line: Mahle Forged Diesel Race Piston and Ring Kits
  • Piston Rings Included: Yes
  • Bore (in): 4.055 in.
  • Bore (mm): 102.997mm
  • Stroke: 3.898 in.
  • Rod Length: 6.417 in.
  • Piston Style: Dish, with four valve reliefs
  • Piston Material: Forged aluminum
  • Compression Height (in): 1.956 in.
  • Piston Head Volume (cc): +41.80cc
  • Wrist Pin Style: Press-fit or floating
  • Wrist Pin Retainers Included: Yes
  • Wrist Pin Included: Yes
  • Pin Diameter (in): 1.358 in.
  • File Fit: No
  • Gapless: No
  • Top Ring Thickness: 3.0mm
  • Top Ring Material: Stainless steel
  • Top Ring Facing Material: Gas nitrided
  • Second Ring Thickness: 2.0mm
  • Second Ring Material: Cast iron
  • Second Ring Facing Material: Chrome
  • Oil Ring Thickness: 3.0mm
  • Oil Ring Material: Carbon steel
  • Oil Ring Tension: Standard
  • Quantity: Sold as a kit.

Other Part Numbers:
Mahle #mhl930036255
