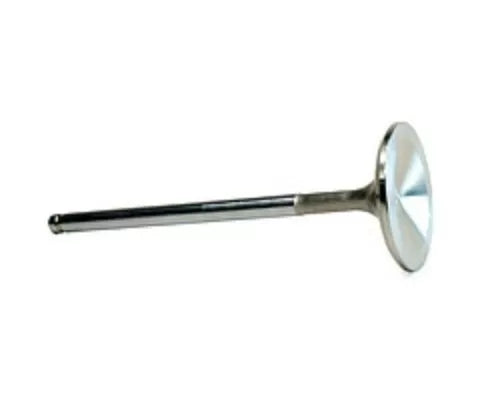

Manley Toyota Land Cruiser 4.5L (1FZ-FE) 38MM Race Flo Intake Valves

11166-12

Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow.

Specifications:

• Type: Intake
• Head Diameter: 38.0mm
• Stem Diameter: 7 mm/.2740"
• O/A Length: 100mm
• Tip Length: 3.8mm
• Underhead Angle/Radius: Pro Flo: 10° X 3/8"
• Margin: .050"
• Seat Width: .075"
• Top of Head: Flat Face

Fitment:

• Toyota Land Cruiser 4.5L I6 - 1993-1998 DOHC 24 Valve (1FZ-FE)

Note:

• Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.
