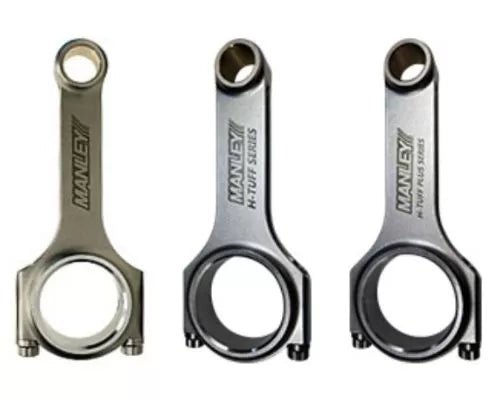

Manley 90-92 Mitsubishi Eclipse GS GST 4G63(T) H Beam Connecting Rod Set

14002-4

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus. H-Tuff and H-Tuff Plus Series have a heavier beam for higher boost applications.

Specifications:

• Center-to-Center: 5.905"
• Big End Bore: 1.890"
• Big End Width: 1.115"
• Pin Diameter: .866" (22 mm)
• Pin Bore: .8671"
• Gram Weight: 550

Fitments:

• Mitsubishi Eclipse GS, GST, GSX & Eagle Talon TSi 2.0 (6 Bolt 4G63, 4G63T 1990-1993.5)

  Make	Model	Submodel	Year	Engine	Notes
  Mitsubishi	Eclipse		1990-1992
