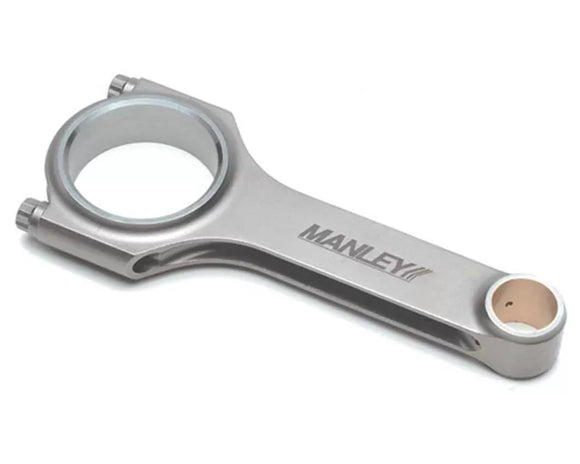

Manley 90-93.5 Mitsubishi Eclipse GS GST GSX (6 Bolt 4G63 4G63T) H Beam Connecting Rod Set

14021-4

Manley Performance manufactures the finest steel connecting rods in the Sport Compact industry. For the budget conscious enthusiast, they offer a very high quality, yet economical, H-Beam design connecting rod. These are manufactured from 4340 alloy forgings and fully machined, heat treated, stress relieved, shot peened, and magnafluxed.

All H-Beam connecting rods are built standard with 3/8" ARP 2000 bolts. H-Plus sets come with ARP 625+ bolts. On all Manley connecting rods, sets are weight matched to ??_ 1.5 grams, big and small end bores are final honed to a tolerance of ??_ .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by the final inspection department; thus rendering a finished product that is second to none.

All Manley Performance H-Beam Rods are rated up to 600 horsepower.

H-Beam Specifications:

• Center-to-Center : 5.905"
• Big End Bore : 1.890"
• Big End Width : 1.115"
• Pin Diameter : .827" (21mm)
• Pin Bore : .8281"
• Weight : 573 grams

  Make	Model	Submodel	Year	Engine	Notes
  Mitsubishi	Eclipse		1990-1993
