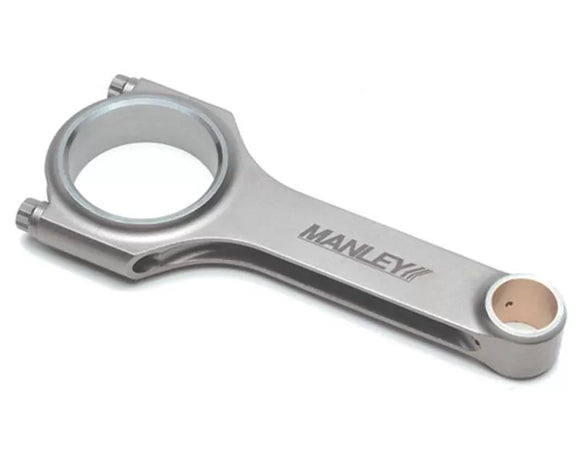

Manley 93-98 Toyota Supra 3.0 2JZG H Beam Connecting Rod Set

14027-6

Manley Performance manufactures the finest steel connecting rods in the Sport Compact industry. For the budget conscious enthusiast, they offer a very high quality, yet economical, H-Beam design connecting rod. These are manufactured from 4340 alloy forgings and fully machined, heat treated, stress relieved, shot peened, and magnafluxed.

All H-Beam connecting rods are built standard with 3/8" ARP 2000 bolts. H-Plus sets come with ARP 625+ bolts. On all Manley connecting rods, sets are weight matched to ????_ 1.5 grams, big and small end bores are final honed to a tolerance of ????_ .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by the final inspection department; thus rendering a finished product that is second to none.

All Manley Performance H-Beam Rods are rated up to 600 horsepower.

H-Beam Specifications:

• Center-to-Center : 5.590"
• Big End Bore : 2.167"
• Big End Width : 1.015"
• Pin Diameter : .866" (22mm)
• Pin Bore : .8671"
• Weight : 552 grams

  Make	Model	Submodel	Year	Engine	Notes
  Lexus	SC300		1992-1998
  Lexus	SC300/400		1991
  Toyota	Supra		1993-1998
