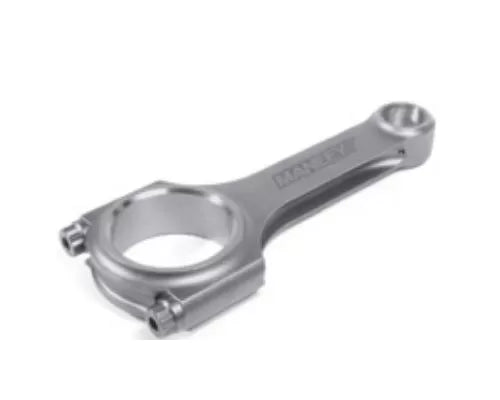

Manley Mazda Speed 3 MZR 2.3L DIDSI Turbo 22.5mm Pin H-Beam Connecting Rod Set

14032-4

Today, Manley Performance continues to re-define itself in a high performance aftermarket industry that is constantly evolving. We've developed new products for growing markets such as sport compact, Ford modular and Chevy LS; as well as maintained our leadership role with the traditional V-8 engine business.

Features:

• Manufactured from 4340 forgings.
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed.
• Weight matched sets + 1.5 grams.
• Cap fasteners are 3/8" ARP 2000 except P/N 14018 which is supplied with 7/16" ARP 8740.
• Flywheel horsepower range for these rods in a 4 cylinder application is 600+ and for a 6 cylinder application the range is 800+

Specifications:

• Center-to Center: 5.927"
• Big End Bore: 2.166"
• Big End Width: .859"
• Pin Diameter: .886" (22.5mm)
• Pin Bore: .8868"
• Avg. Gram Weight: 610

Fitments:

• Mazda Speed 3 MZR 2.3L DISI Turbo

Notes:

• Part number 14018 is also available with 7/16" ARP 2000 cap screws yielding a 1100+ horsepower rating. Affix "R" after the rod part number (14018R-6)
• Sold as a Set of 4
