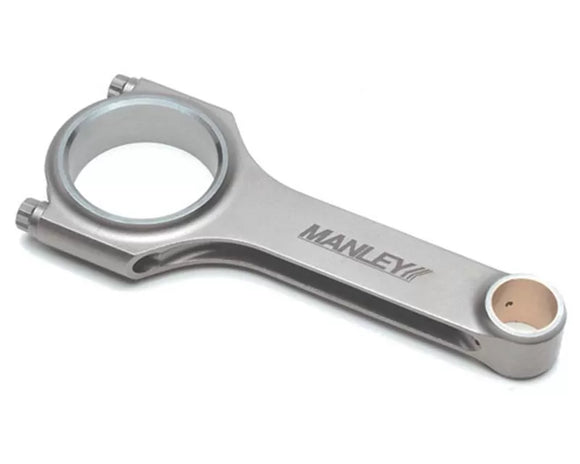

Manley Ford Modular V8-4.6L Stroker w/ 22mm pin & a 2.000in Crnak Journal H-Beam Connecting Rod Set

14044-8

Manley Performance manufactures the finest steel connecting rods in the industry. For the budget conscious enthusiast, they offer a very high quality, yet economical, H-Beam design connecting rod. These are manufactured from 4340 alloy forgings and fully machined, heat treated, stress relieved, shot peened, and magnafluxed.

All H-Beam connecting rods are built with a choice of 3/8" ARP 2000 or ARP 8740 bolts. On all Manley connecting rods, sets are weight matched to +/- 1.5 grams, big and small end bores are final honed to a tolerance of +/- .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by the final inspection department; thus rendering a finished product that is second to none.

These Manley Performance H-Beam Rods are rated up to 750 horsepower with ARP 8740 bolts.

H-Beam Specifications:

• Center-to-Center : 5.850"
• Big End Bore : 2.125"
• Big End Width : .940"
• Pin End Width : .940"
• Pin Bore : .8671"
• Weight : 612 grams
