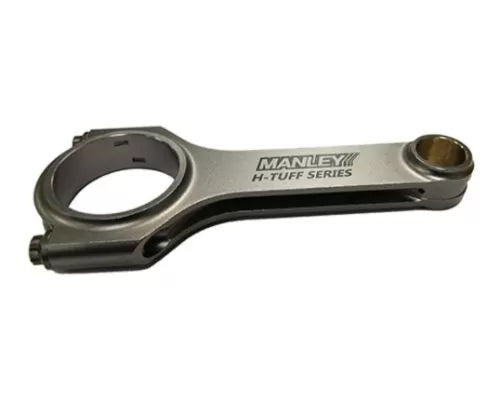

Manley Chevy Small Block LS-1 6.125in H Beam w/ ARP 2000 Connecting Rod *Single

14051R-1

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled.

Features:

• Cap fasteners are premium 3/8" ARP 2000 with the H-Lites, 7/16" ARP 8740 or optional.
• ARP 2000 with the H-Beams and 7/16" ARP 2000 come standard with the H-Tuffs.
• Flywheel horsepower range for these rods: 600+ HP (3/8" ARP 2000)
• 725 HP (7/16" ARP 8740), 775 HP (7/16" ARP 2000) - Oval Track.
• 750 HP (7/16" ARP 8740), 900 HP (7/16" ARP 2000) - Drag Race.
• 1,000 HP (Oval Track), 1,200+ HP (Drag Race) - H-Tuff.

Specification (Standard Weight):

• Journal Size: Large No Offset
• Center-to-Center: 6.125"
• Big End Bore: 2.225"
• Pin Bore: .9281"
• Gram Weight: 656

Fitments:

• Chevrolet LS Standard Weight Series .025" Longer

Notes:

• Sold individually
