14322-8

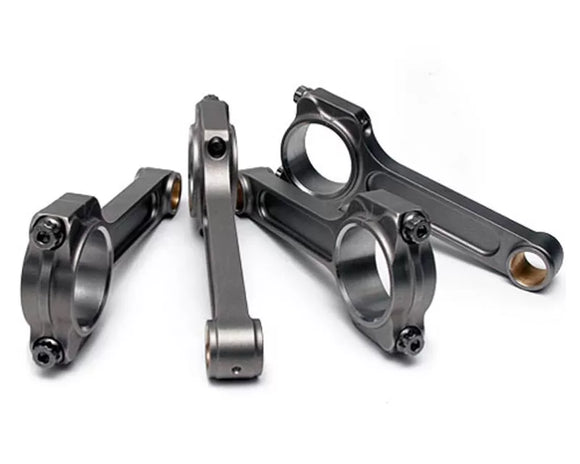

Manley Performance manufactures the finest steel connecting rods in the industry. These Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. The signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications.
All I-Beam connecting rods are built with 7/16" ARP 2000 cap screws. On all Manley connecting rods, sets are weight matched to +/- 1.5 grams, big and small end bores are final honed to a tolerance of +/- .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by the final inspection department; thus rendering a finished product that is second to none.
These Manley Performance I-Beam Rods are rated up to 800 horsepower with ARP 2000 cap screws.
I-Beam Specifications:
- Center-to-Center : 6.200"
- Big End Bore : 2.239"
- Big End Width : .978"
- Pin End Width : .978"
- Pin Bore : .9281"
- Weight : N/A grams
Make Model Submodel Year Engine Notes Ford F-150 2009 Ford Raptor SVT 2010
