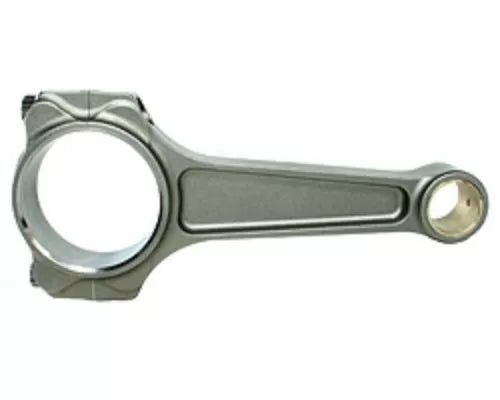

Manley Small Block Chevy LJ-1 6.000in Pro Series I Beam Connecting Rod Set - Set of 8

14354-8

Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Pro Series Lightweight" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are held to exacting tolerances. Bend and twist is tightly controlled. Cap fasteners are 7/16" ARP 2000 or optional 7/16" ARP Custom Age 625 cap screws.

These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Specification (Lightweight):

• Center-to Center: 6.000"
• Big End Bore: 2.225"
• Big End Width: .940"
• Pin End Width: 1.000"
• Pin Bore: .9281"
• Gram Weight: 600

Fitments:

• Chrysler | Dodge HEMI 426 Hemi Drag Pak Crate Engine w/ SB Chevy 2.100" crank journal and .927" pin

Note:

• The above connecting rods are supplied with 1.450" under head length 7/16" ARP 2000 cap screw fasteners P/N 42390. Upgraded 7/16" ARP Custom Age 625+ cap screws P/N 42252 are available. To order upgraded fasteners, affix "R6" after the rod part number.
• Sold as a Set of 8
