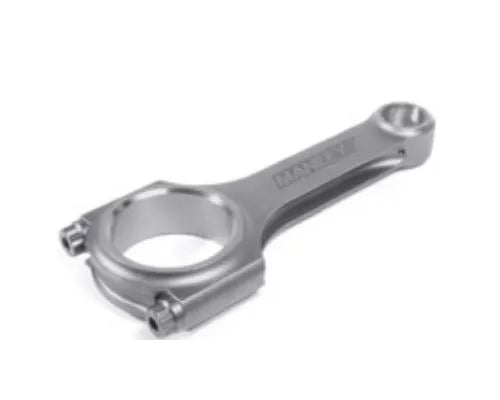

Manley Mazda 3 MZR 2.3L Turbo Tuff Pro Series I Beam Connecting Rod Set w/ARP 625+ Bolts

14430R6-4

Today, Manley Performance continues to re-define itself in a high performance aftermarket industry that is constantly evolving. We've developed new products for growing markets such as sport compact, Ford modular and Chevy LS; as well as maintained our leadership role with the traditional V-8 engine business.

Features:

• Forged from 4340 aircraft quality vacuum degassed material (P/N's 15403, 15424, 15444 and 15524 are made from 300M alloy).
• Shot peened after machining to MIL spec and 100% individually magnafluxed.
• Specifically designed to handle high horsepower applications when using turbos and/or nitrous.
• Fasteners are 3/8" except P/N's 14424, 14428, 15424, 15444 and 15524 are supplied with 7/16" fasteners.
• Flywheel horsepower range for these 4340 rods in a 4 cylinder application is 1,000+ and for a 6 cylinder application the range is 1,250+.
• Flywheel horsepower range for these 300M rods in a 4 cylinder application is 1,400+ and for a 6 cylinder application the range is 1,600+ (15424) and 2,000+ (15444/15524).

Specifications:

• Center-to Center: 5.927"
• Big End Bore: 2.166"
• Big End Width: .859"
• Pin Diameter: .866" (22mm)
• Pin Bore: .8671"
• Avg. Gram Weight: 605

Fitments:

• Mazda Speed 3 MZR 2.3L DISI?Turbo

Notes:

• Sold as a Set of 4
