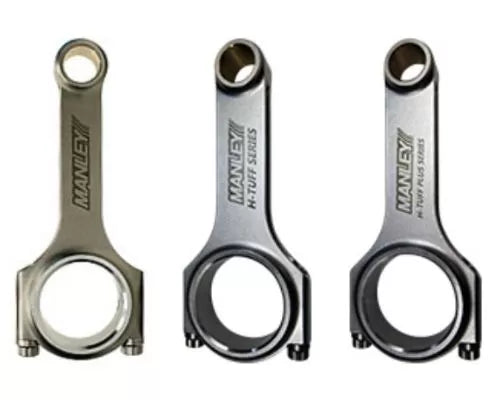

Manley 93-06 Mitsubishi 4G63/4G63T 2.0L H Tuff Beam 6.142in L Connecting Rod Set

15020-4

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus. H-Tuff and H-Tuff Plus Series have a heavier beam for higher boost applications.

Specifications:

• Center-to-Center: 6.142"
• Big End Bore: 1.890"
• Big End Width: 1.038"
• Pin Diameter: .866"(22mm)
• Pin Bore: .8671"
• Gram Weight: 635

Fitments:

• Mitsubishi Eclipse GST, GSX & Eagle Talon TSi (7 Bolt 4G63, 4G63T 1993.5-1999) Mitsubishi Evolution VIII, IX (4G63T 2003-2006) - .237"/6mm Longer

Notes:

• Sold as a Set of 4

  Make	Model	Submodel	Year	Engine	Notes
  Mitsubishi	Eclipse		1994-1999
  Mitsubishi	Evolution		2003-2006
