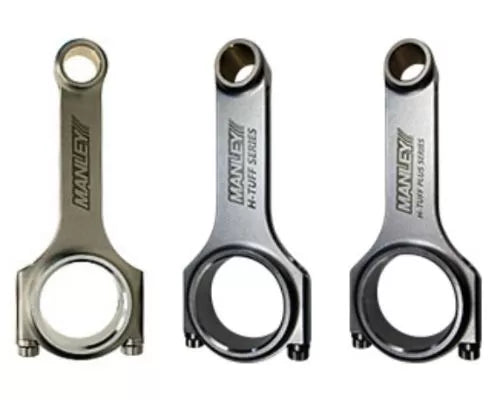

Manley 08+ Mitsubishi 4B11T 2.0L H Tuff Beam 5.656in L Connecting Rod Set w/ ARP 625+ Bolts

15029R6-4

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Bend and twist is tightly controlled. Weight matched to +/- 1.5 grams. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.

Specifications:

• Center-to-Center: 5.656"
• Big End Bore: 2.165"
• Big End Width: .860"
• Pin Diameter: .9055" (23mm)
• Pin Bore: .9063"
• Gram Weight: 620

Fitments:

• Mitsubishi EVO X 4B11T (2008-Up) - H-Tuff Series with heavier beam for higher boost applications

  Make	Model	Submodel	Year	Engine	Notes
  Mitsubishi	Evolution X		2008-2015
