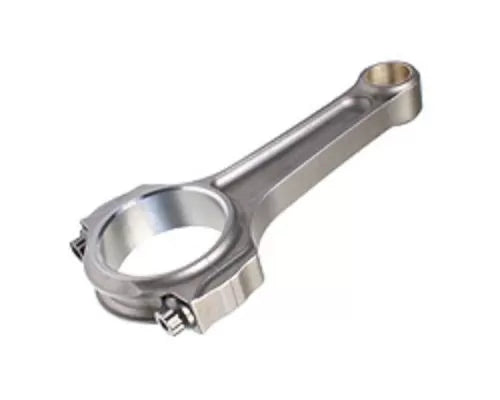

Manley 1993.5-99 Mitsubishi Eclipse GST/GSX 2.0 Pro Series 300M TTuff I Beam Rod - Set of 4

15403-4

On all Manley connecting rods, sets are weight matched to ? 1.5 grams, big and small end bores are final honed to a tolerance of ? .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none.

Features:

• Forged from 300 M aircraft quality material
• Fully machined to produce the lightest and strongest rod possible
• Shot peened and 100% magnafluxed
• 3/8" ARP 2000 cap fasteners
• Horsepower range for these rods is 1,300+ H.P. with ARP 2000 fasteners and 1,500 H.P. with ARP 625+ fasteners

Specifications:

• Center-to-Center: 5.905"
• Big End Bore: 1.890"
• Big End Width: 1.038"
• Pin Diameter: .866"(22mm)
• Pin Bore: .8671"
• Gram Weight: 675

Fitments:

• Mitsubishi Eclipse GST, GSX & Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999 ) Mitsubishi Evolution VIII, IX (4G63T 2003-2006)

Notes:

• Sold as a Set of 4

  Make	Model	Submodel	Year	Engine	Notes
  Mitsubishi	Eclipse		1994-1999
  Mitsubishi	Evolution		2003-2006
