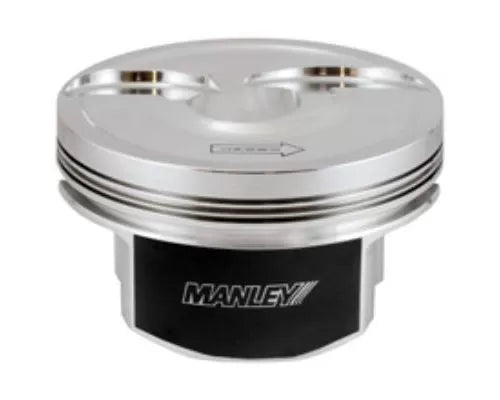

Manley Chevrolet 5.3L 3.785in Bore 6.125in. Rod Length 4.000in Stroke -7cc Dome Piston Set of 8

561105C-8

Manley Performance continues to re-define itself in a high performance aftermarket industry that is constantly evolving. We've developed new products for growing markets such as sport compact, Ford modular and Chevy LS; as well as maintained our leadership role with the traditional V-8 engine business.

Features:

• 2618 high strength material lightweight design.
• Moly Coated Skirts.
• Offset wrist pin design.
• Machined for reluctor wheel clearance.
• Round wire locks.
• 1.2, 1.2, 3.0mm ring package.
• Forced pin oiling, pressure balance groove and precision pin fitting.
• Premium Chrome Moly wrist pins (Standard Series) included.
• 9310 alloy .170" wall pin (Extreme Duty Series) included P/N 42542.

Specifications (Stroker Series):

• Bore Size: 3.785"
• Over Size: +.005"
• Rod Length: 6.125"
• Stroke: 4.000"
• Comp. Distance: 1.115"
• Combustion Chamber (58cc): 10.82
• Combustion Chamber (62cc): 10.32
• Combustion Chamber (66cc): 9.87
• Combustion Chamber (70cc): 9.46
• Dome Volume (cc): -7
• Piston Type: Dish
• Included Ring Set
• Ductile Iron Top Rings: 46500-8
• Premium Steel Top Rings: 46500ST-8

Fitment:

• Chevrolet 5.3L LS | L83
• Gen III/IV for 3.622" & 4.000" Strokes
