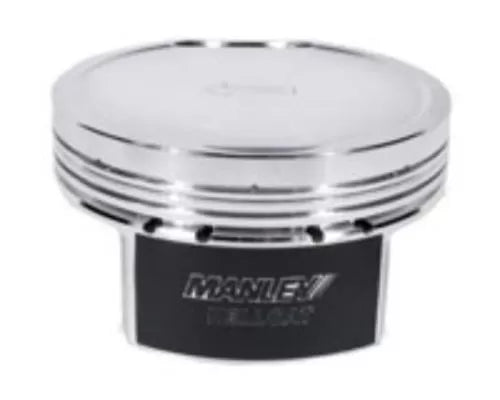

Manley Dodge Hellcat 4.095 Bore -6.5cc 9.5:1 CR Platinum Series Dish Piston Set

597905C-8

Today, Manley Performance continues to re-define itself in a high performance aftermarket industry that is constantly evolving. We've developed new products for growing markets such as sport compact, Ford modular and Chevy LS; as well as maintained our leadership role with the traditional V-8 engine business.

Features:

• Forged 2618 high strength material lightweight design.
• Offset wrist pin design.
• Round wire locks.
• 1.2, 1.2, 2.5mm ring package with lateral gas ports.
• Other features include forced pin oiling and pressure balance groove.
• 2.300" x .210" wall Premium Chrome Moly pin (Standard Series) included.
• 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42542.

Specification (Stroke Pistons):

• Bore Size: 4.095"
• Over Size: +.005"
• Rod Length: 6.200"
• Stroke: 3.579"
• Comp. Distance: 1.278"
• Comp. Ratio: 9.5:1
• Pistons Wt / Gms: 457
• Dome Volume (cc): -6.5
• Piston Type: Dish
• Premium Steel Top Rings: 46133ST-8

Fitment:

• Dodge | Chrysler Hellcat

Note:

• These pistons are designed for connecting rods with .927" diameter floating wrist pins.
