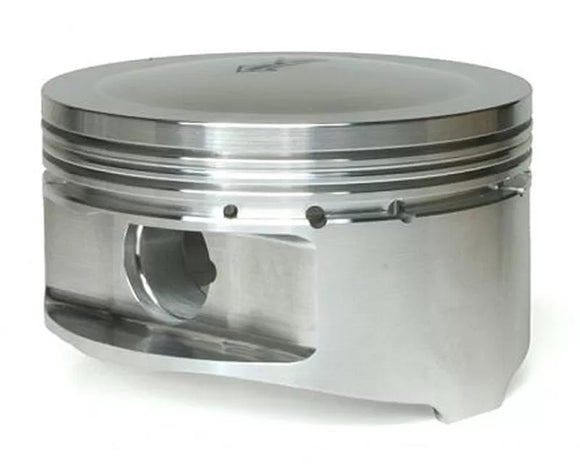

Manley 94-01 Acura Integra GSR (B18C1) 81mm STD Bore 9.0:1 Dish Piston Set with Rings

600000-4

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through a unique "one fixturing" manufacturing method that assures maximum horsepower.

Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

• Lightweight design with offset wrist pin
• Premium steel top ring sets and round wire locks included
• Made for +1mm valve sizes
• Pressure balance groove

81/81.5mm Standard Stroke Piston Specifications:

• Bore Size : 81mm or 81.5mm
• Over Size : OEM or + .5mm
• Rod Length : 138mm
• Stroke : 87.2mm
• Comp Distance : 1.181"
• Dome Volume : -9.3cc
• Comp Ratio : 9.0:1
• Piston Type : Dish
• Piston Weight : 290 grams

This piston is available in your choice of two Bore Sizes. Please make your selection below.

NOTE: Recommended piston clearance .0040" measured 1.100" from the bottom of the oil ring.
