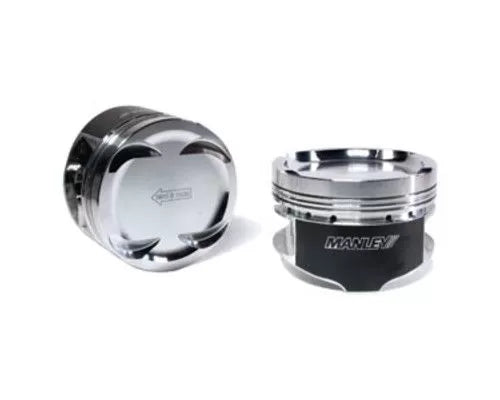

Manley 93-98 Toyota Supra Turbo (2JZGTE) 86mm STD Bore 9:1 Dish Piston Set with Ring

609000C-6

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower.

Features:

• All pistons come with moly coated skirts and will accommodate +1mm valve sizes.
• Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.
• 9310 alloy upgraded wrist pins are available. Simply order the EXTREME DUTY part number in the column below.
• These are equipped with 9310 pins. Recommended clearance: .0035" measured 1.100" down from the bottom of the oil ring groove.

Specification of Toyota Supra Turbo 93-98 - 2JZGTE 3.0L .866"/22mm x 2.250" Pin x .150" Wall:

• Bore size: 86mm
• Over size: Standard
• Rod Length: 5.590"
• Stroke: 86mm STD STROKE (3.0L)
• Comp. Distance: 1.338"
• Dome Volume: -10cc
• Cylinder Head: 45cc
• Comp. Ratio: 9.1
• Piston Type: Dish
• Piston (Wt/Gms): 347
• Included Ring Set

  Make	Model	Submodel	Year	Engine	Notes
  Toyota	Supra		1993-1998
