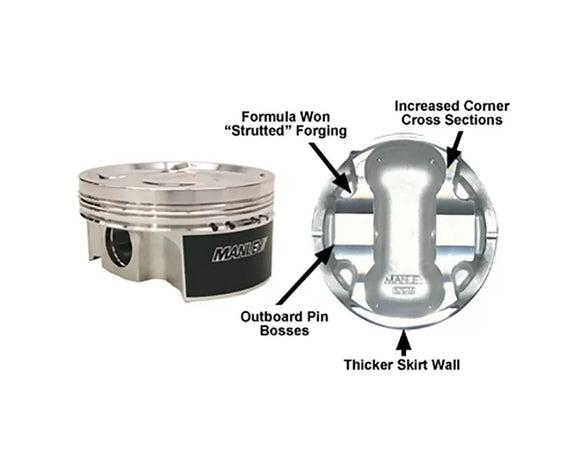

Manley 04+ Subaru WRX/STi (EJ257) 83mm Stroke 99.75mm +.25mm Size B 8.5:1 CR Extreme Duty Piston Set

632402CE-4

The best aftermarket Subaru piston company just got even better with our new Turbo Tuff lineup targeted specifically for EJ25 engines. By incorporating proven design enhancements from our "Formula-Won" piston forging, we've created the ultimate Subi piston to withstand the rigors of the highest boosted and stressed applications yet still run "quietly" and trouble-free for the daily driver. Like all Manley Subaru pistons, these are made from 2618 alloy, utilize an offset wrist pin design, are skirt coated and include our standard 2.500" x .180" wall premium chrome moly wrist pin (P/N 42346). 9310 alloy .250" wall pin upgrades are available. Simply order the EXTREME DUTY part number in the column below. These come equipped with the 9310 pins (P/N 42547). Premium steel top rings with Napier style second rings and higher tension oil rings for ultimate oil control are included with each set along with round wire locks. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79/83mm Strokes) and 1.100" (75mm Stroke) from the bottom of the oil ring groove.

Features:

• Bore Size (mm) : 99.75
• Over Size : +.25mm
• Rod Length : 5.137"
• Comp. Distance : 1.130"
• Dome Volume (cc) : -26
• Cylinder Head (cc) : 51
• Comp. Ration : 8.5
• Piston Type : Dish
• Piston wt/gms : 393
• Included Ring set : 46997DT-4

Fitments:

• Subaru WRX | STi EJ257 2004-2014

  Make	Model	Submodel	Year	Engine	Notes
  Subaru	STI		2004-2021
  Subaru	WRX		2004-2014
