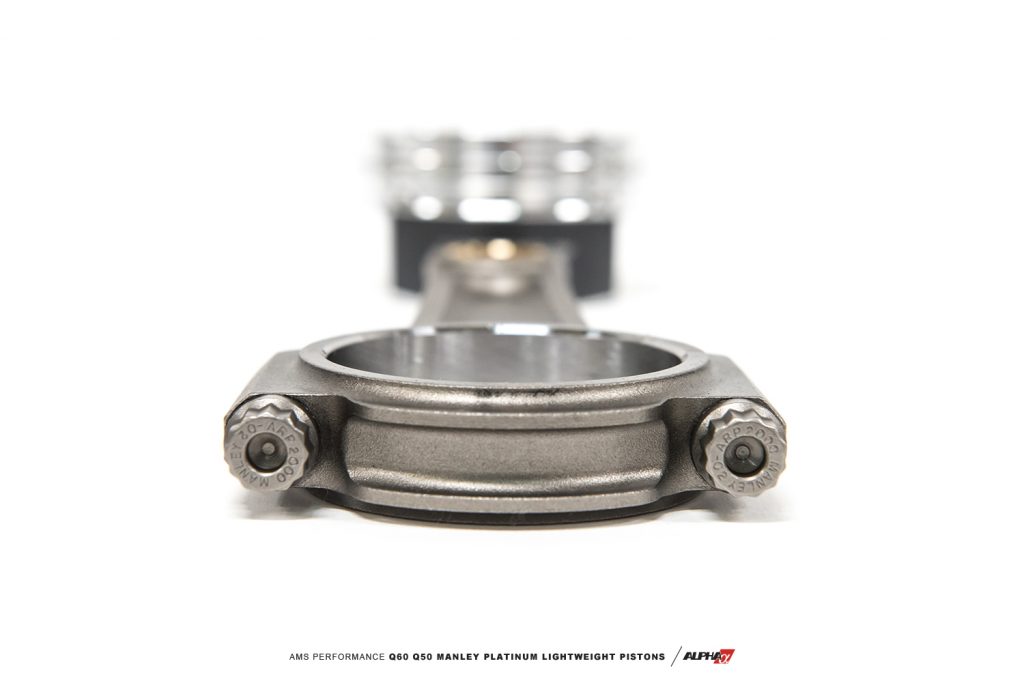

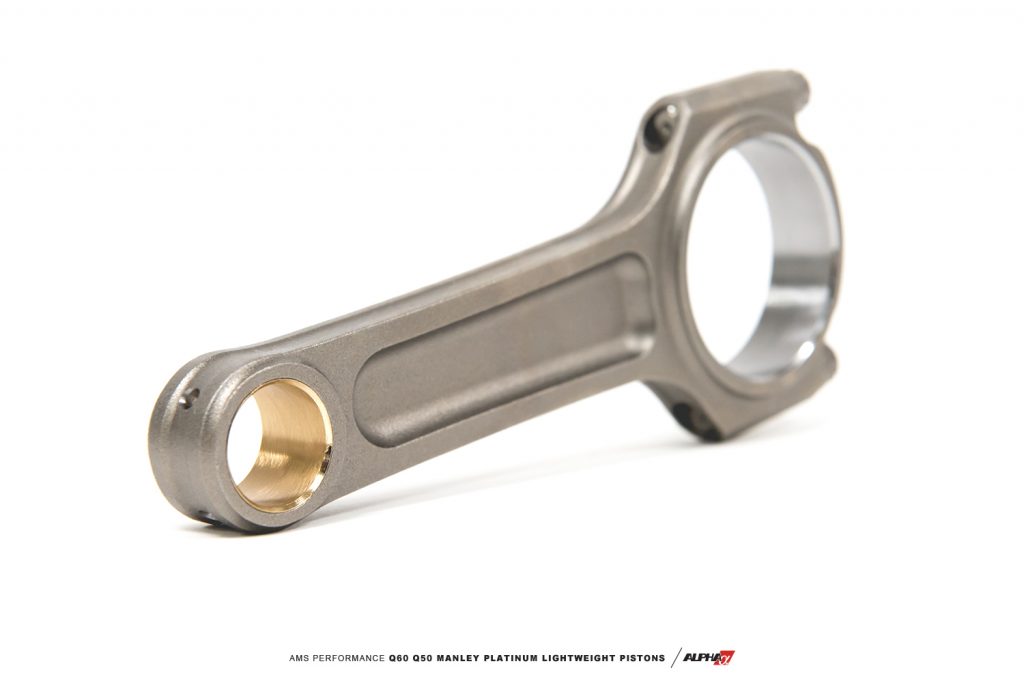

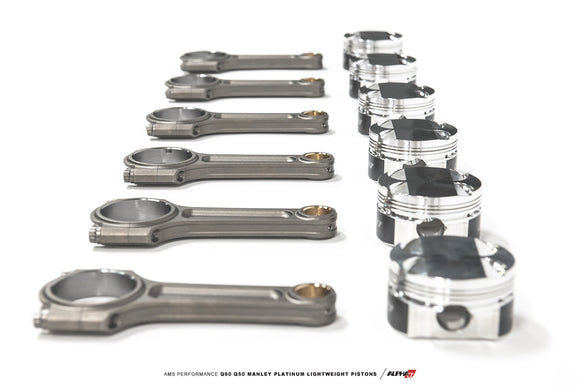

Manley VR30DDTT Pro Series I-Beam Turbo Tuff Rods

14437-6

DESCRIPTION

Manley Performance’s Q60 and Q50 VR30 Pro Series I-Beam Turbo Tuff Rods are forged from 4340 aircraft quality vacuum degassed material. After the machining is complete the Pro Series I-Beam Turbo Tuff Rods are shot peened to a MIL specification and 100% individually magnafluxed.

Manley Performance’s Q60 and Q50 VR30 Pro Series I-Beam Turbo Tuff Rods are specifically designed to handle high horsepower applications when using turbos and/or nitrous. The flywheel horsepower rating for the 4340 I-Beam Turbo Tuff Rods in a 6 cylinder application is +1,250 HP!*

Q50 Q60 VR30 Pro Series I-Beam Turbo Tuff Rods

Benefits

• Forged from 4340 aircraft quality vacuum degassed material

• Shot peened after machining to MIL spec and 100% individually magnafluxed

• Specifically designed to handle high horsepower applications when using turbos and/or nitrous

• Fasteners are 3/8”

• Flywheel horsepower range for these 4340 rods in a 6 cylinder application is +1,250 HP!*

INFINITI VR30 Pro Series I-Beam Turbo Tuff Rods. Pistons not included.

Q60 Q50 rods. Pistons not included.

*You will see that we list “horsepower ratings” for each different series/application of Manley connecting rods. However, it is very important to understand that these “ratings” are somewhat subjective. The critical factors that significantly influence the fatigue life of connecting rods (and the horsepower rating) are RPM, stroke, piston weight and power adders. In certain cases, our horsepower ratings may be conservative.

Applications

INFINITI Q60 & Q50 VR30DDTT
