MMRAD-CAM-82
Key Features
- Full aluminum radiator featuring robust TIG-welded construction
- Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip

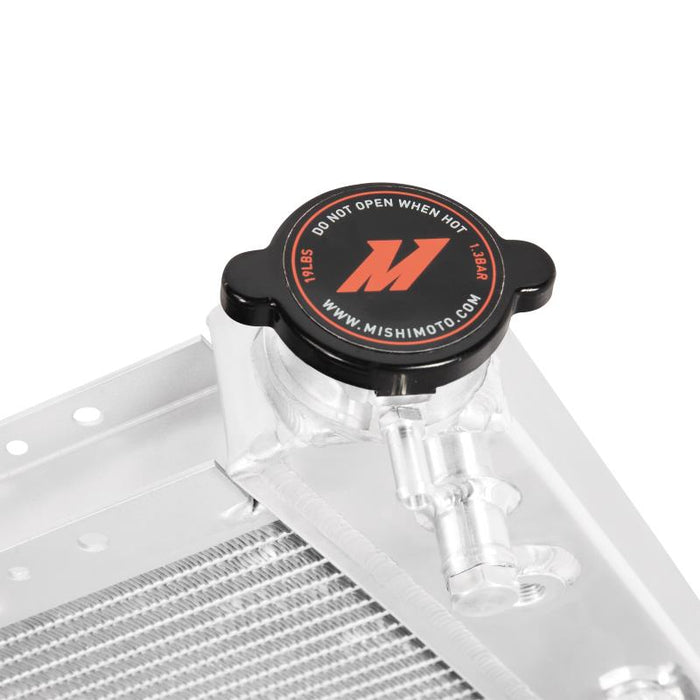

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Polished aluminum end tanks enhance engine bay aesthetics
- Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Product Description

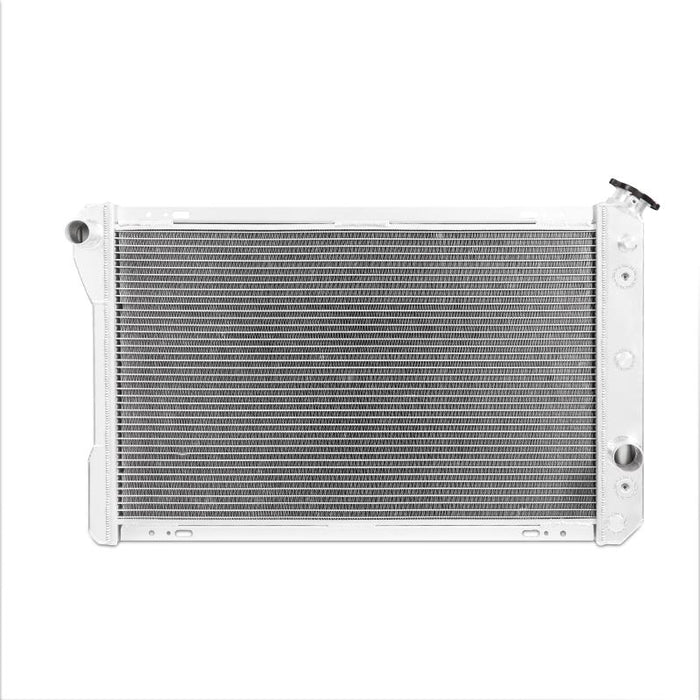

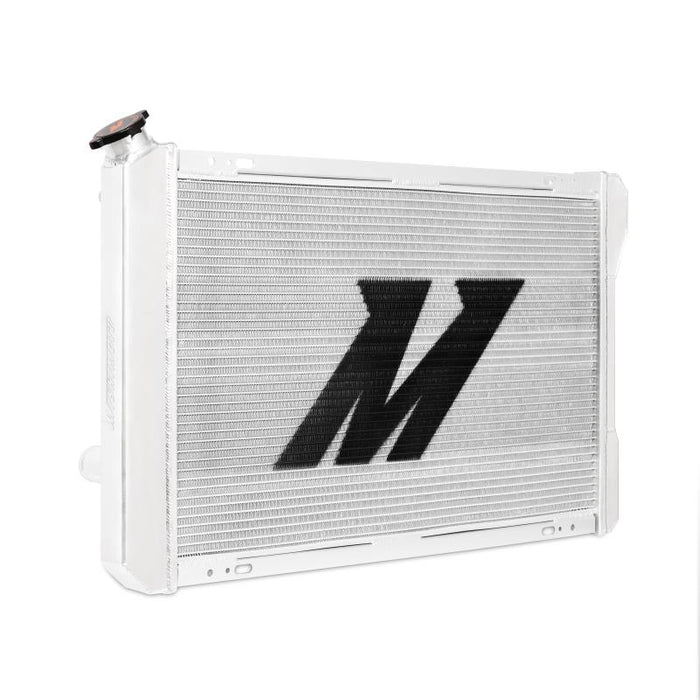

A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the ultimate upgrade in cooling efficiency. This aluminum radiator utilizes a 2-row core with precision TIG-welded aluminum end tanks for increased reliability and cooling efficiency. The radiator comes with a Mishimoto High-Pressure Radiator Cap to keep your stock or modified small block temperatures in check. This radiator also includes a Mishimoto M12 x 1.25" Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system. Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Chevrolet Camaro / Pontiac Firebird Performance Aluminum Radiator is a direct fit product that requires no cutting or trimming and, as with all our aluminum radiators, includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
| Overall Height (in) | 31.5 |
|---|---|
| Overall Length (in) | 19.5 |
| Overall Width (in) | 4.5 |
| Core Length (in) | 26.2 |
| Core Height (in) | 16.5 |
| Fluid Capacity (gal) | 4.63 |
| Rows | 2 |
| Inlet (in) | 1.37 |
| Outlet (in) | 1.57 |
| Core Thickness (in) | 1.96 |
| Drain Plug Thread Size | M12 x 1.5 |
| DPI | 951 |
| Applications | 1982-1992 Chevrolet Camaro L6 & V8 1982-1992 Pontiac Firebird Trans Am |
| Engine Codes | V6 V8 |
| Coolant Capacity | 4.63 |
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug w/ Dowty Oil Seal
1/8-inch NPT Plug
1/4-inch NPT Plugs
Mishimoto Lifetime Warranty
