MMRAD-CIV-22
Key Features
- Direct fit for the 2022+ Honda Civic 1.5T
- All-aluminum design with precision TIG-welded end tanks
- 85% increase in internal tube area for improved heat dissipation
- Sturdy 40mm thick strutted tube core resists chassis flex
- Includes Mishimoto Magnetic Drain Plug to capture metallic debris within cooling system
- Compatible with Mishimoto Silicone Coolant Hose Kit and stock
- Foam seal included to ensure a perfect fit against fan shroud
- 53% increase in external fin area to efficiently transfer heat from coolant
- 44% increase in core volume for improved cooling capacity
- Plug-and-play installation without need for bumper removal
- Includes 1.3 bar high-pressure radiator cap
- Mishimoto Lifetime Warranty
Product Description

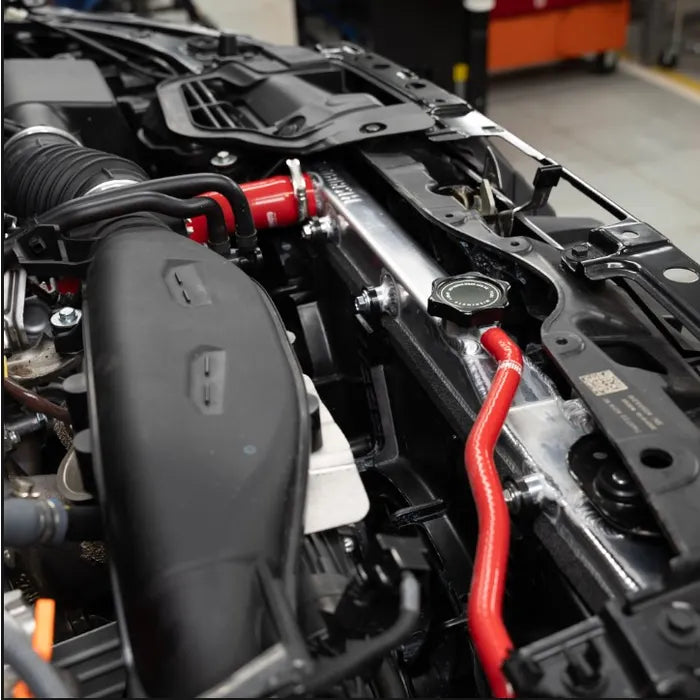

Upgrade the cooling system of your 2022+ Honda Civic 1.5T with the Mishimoto Performance Radiator, engineered for maximum efficiency and durability. The all-aluminum construction features precision TIG-welded end tanks and a robust 40mm thick strutted tube core that’s designed to resist chassis flex during intense driving. With a 44% increase in core volume, a 53% larger external fin area, and an 85% boost in internal tube area, this radiator ensures efficient heat transfer and dissipation to keep your engine cool in the most demanding of conditions.
Designed as a direct-fit upgrade, this radiator offers plug-and-play installation without the need for bumper removal. It’s also fully compatible with both stock hoses and the Mishimoto Silicone Coolant Hose Kit, making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris, and this radiator comes backed by the Mishimoto Lifetime Warranty.
Designed as a direct-fit upgrade, this radiator offers plug-and-play installation without the need for bumper removal. It’s also fully compatible with both stock hoses and the Mishimoto Silicone Coolant Hose Kit, making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris, and this radiator comes backed by the Mishimoto Lifetime Warranty.
| Overall Height (in) | 20.92 |
|---|---|
| Overall Length (in) | 30.44 |
| Overall Width (in) | 4.38 |
| Core Length (in) | 29.81 |
| Core Height (in) | 15.82 |
| Fluid Capacity (gal) | 0.87 |
| Rows | 2 |
| Inlet (in) | 1.26 |
| Outlet (in) | 1.26 |
| Core Thickness (in) | 1.57 |
| Drain Plug Thread Size | M12 X 1.5 |
| DPI | 13932 |
| Material | Aluminum |
| Applications | Honda Civic Sedan (EX-L, Sport Touring) 1.5L L4 2022+ Honda Civic Si 1.5L L4 2022+ Acura Integra (Base, A-Spec) 1.5L L4 2023+ Honda Accord 1.5L L4 2023+ Honda Accord 2.0L L4 2023+ |
| Engine Codes | K20C L15B L15C |
| Chassis Codes | FE1 FE2 FE4 FL1 FL2 FL4 |
Purchase Includes
(1) Mishimoto Performance Radiator
(1) Fan Shroud/ AC condenser hardware kit
Mishimoto Lifetime Warranty
(1) Fan Shroud/ AC condenser hardware kit
Mishimoto Lifetime Warranty
