MMRAD-EVO-10
Key Features
- Direct fit for the 2008-2015 Mitsubishi Lancer Ralliart and Evolution X

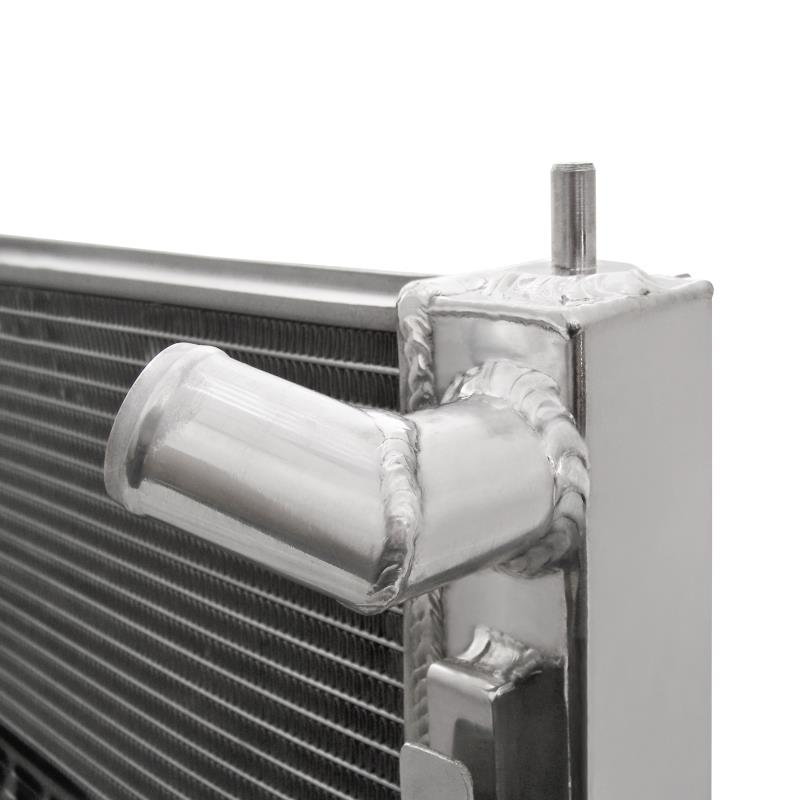

- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick brazed aluminum core, providing ideal fluid temperature regulation
- Increased fluid capacity and superior heat dissipation
- Ideal for stock or modified vehicles
- Perfect upgrade to the stock plastic end tank radiator, engineered for use in extreme driving conditions such as track days, autocross, and aggressive street driving
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Product Description

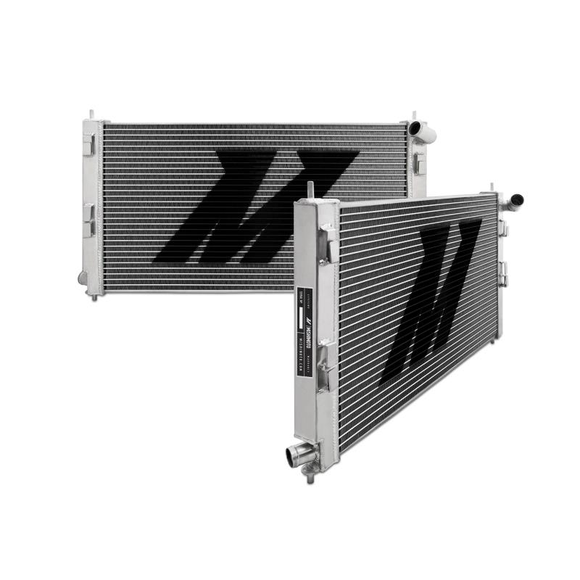

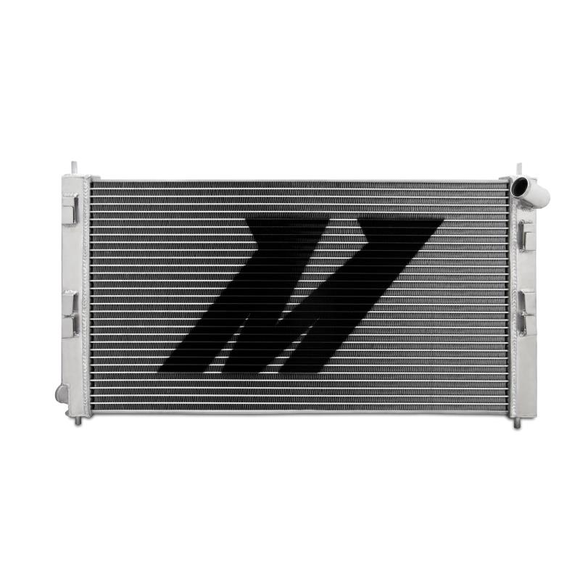

Mishimoto has developed the industry's first after-market performance aluminum radiator available for the 2008-2015 Mitsubishi Lancer Ralliart and Evolution X. This is the ideal upgrade to your stock 2008-2015 Mitsubishi Lancer Ralliart and Evolution X radiator. Having a turbo set up produces a great amount of heat. By replacing your current 2008-2015 Mitsubishi Lancer Ralliart and Evolution X radiator with a top of the line Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler more efficient running engine. The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation. Looking for even more cooling efficiency? Check out the Mishimoto 2008-2015 Mitsubishi Lancer Ralliart and Evolution X hose kits. Also fits: 2010 Mitsubishi Lancer Ralliart
| Overall Height (in) | 32.5 |
|---|---|
| Overall Length (in) | 19.3 |
| Overall Width (in) | 2.07 |
| Core Length (in) | 27.56 |
| Core Height (in) | 16.06 |
| Fluid Capacity (gal) | 2.24 |
| Rows | 2 |
| Inlet (in) | 1.4 |
| Outlet (in) | 1.4 |
| Core Thickness (in) | 1.57 |
| Drain Plug Thread Size | M12 x 1.5 |
| DPI | 2978 |
| Applications | 2008-2015 Mitsubishi Evolution 2009-2015 Mitsubishi Lancer Ralliart 2007-2009 Mitsubishi Outlander ES/LS/SE/XLS |
| Engine Codes | 4B11T 4G69 4B12 6B31 (Outlander) |
| Chassis Codes | CZ4A |
| Coolant Capacity | 2.24 |
Purchase Includes
Mishimoto Radiator
Magnetic Drain Plug
Mishimoto Lifetime Warranty
Magnetic Drain Plug
Mishimoto Lifetime Warranty
