MMRAD-F2D-99
Key Features
- Direct fit for 1999-2005 F-250, 350, 450, 550 and Excursion with the 5.4L, 6.8L, and 7.3L

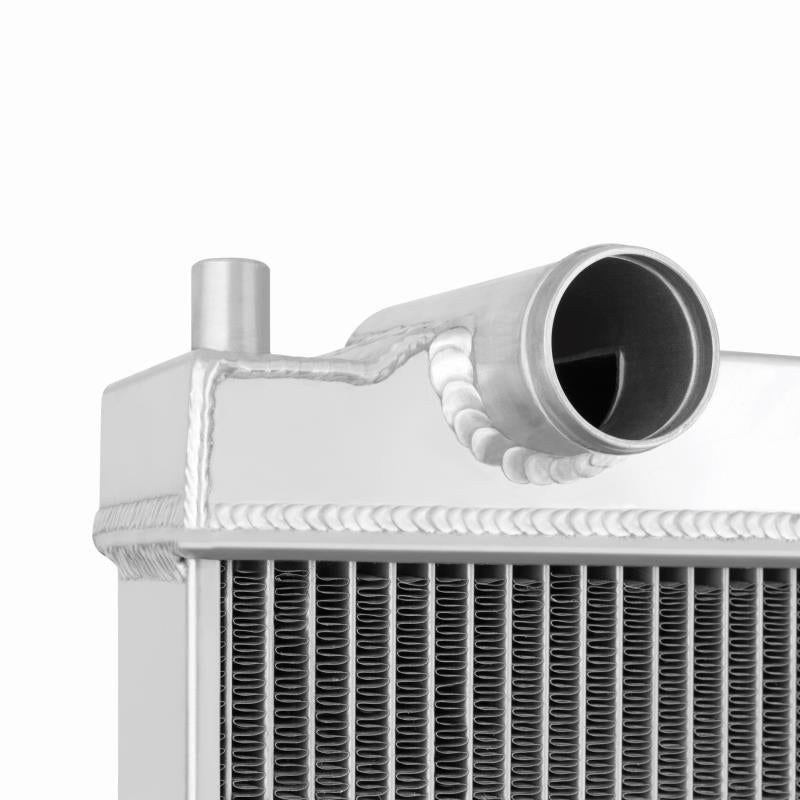

- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
- Increased fluid capacity and superior heat dissipation
- Perfect upgrade to the stock plastic end tank radiator
- Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system

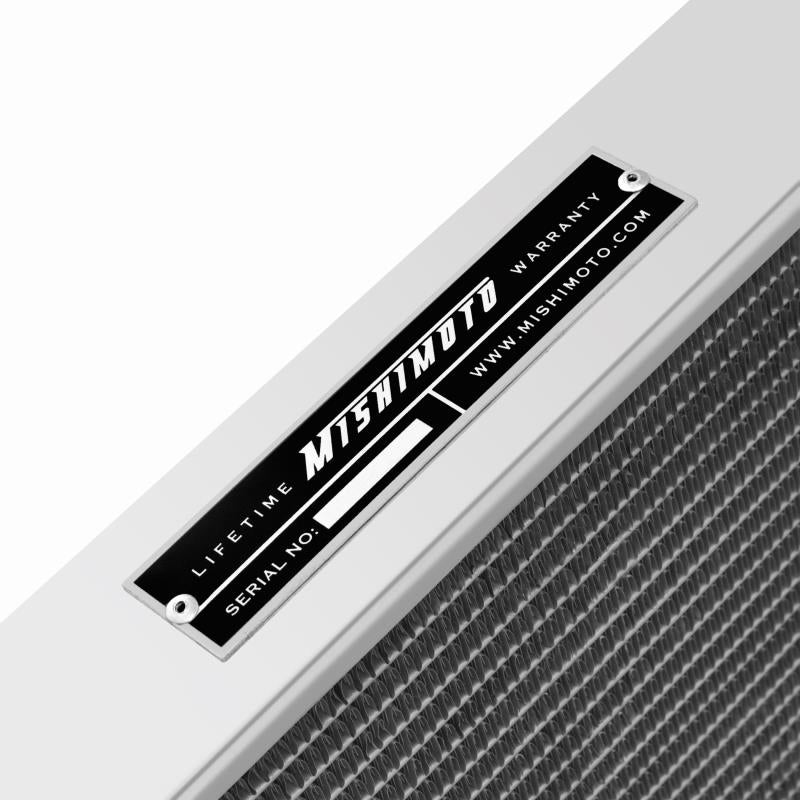

- Mishimoto Lifetime Warranty
Product Description

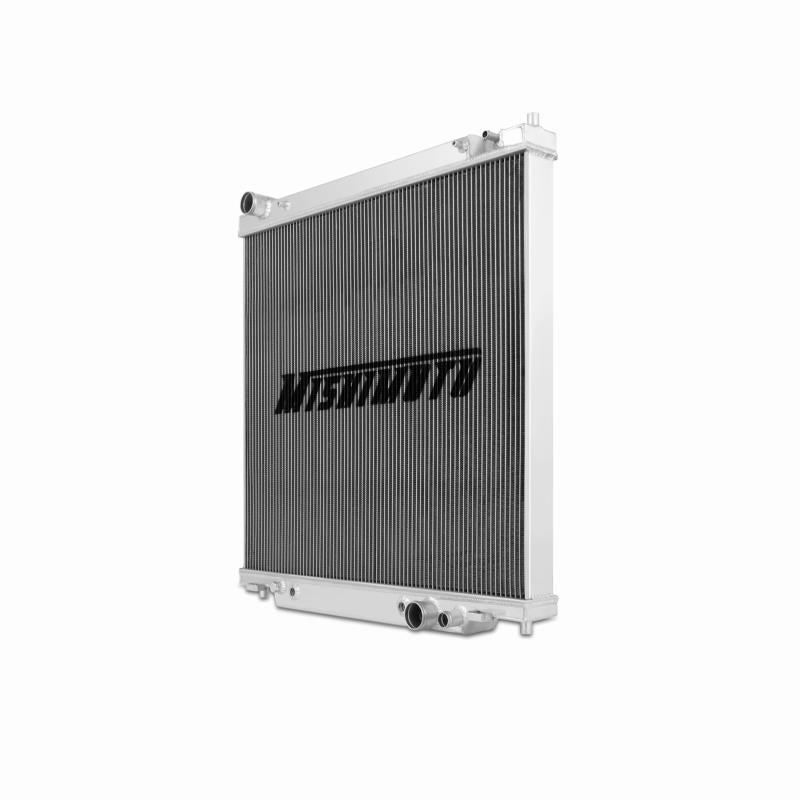

The 7.3 Powerstroke is well known for its reliability and longevity, so why not pair an amazing engine with a radiator that can keep up! Mishimoto has released a performance aluminum radiator for the 1999-2003 Ford 7.3L Powerstroke.The Mishimoto Powerstroke aluminum radiator is an ideal upgrade for your work truck, mud truck, or modified pull truck.Whatever the use of your truck, the Mishimoto radiator will keep your engine cool with its brazed aluminum core and TIG-welded end tanks for superior reliability and performance.The Mishimoto 7.3L radiator is precision engineered for exact factory fitment;it bolts right up to the stock fan shroud, allowing for easy installation.Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature lifetime warranty.
| Overall Height (in) | 30 |
|---|---|
| Overall Length (in) | 31.7 |
| Overall Width (in) | 4.7 |
| Core Length (in) | 29.4 |
| Core Height (in) | 26.5 |
| Fluid Capacity (gal) | 9.25 |
| Rows | 2 |
| Inlet (in) | 1.77 |
| Outlet (in) | 1.77 |
| Core Thickness (in) | 2.2 |
| Drain Plug Thread Size | M12 x 1.5 |
| DPI | 2171 |
| Applications | 1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L 1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L 1999-2004 Ford F-450 w/ 6.8L/7.3L 1999-2003 Ford F-550 w/ 6.8L/7.3L 2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3 |
| Note |

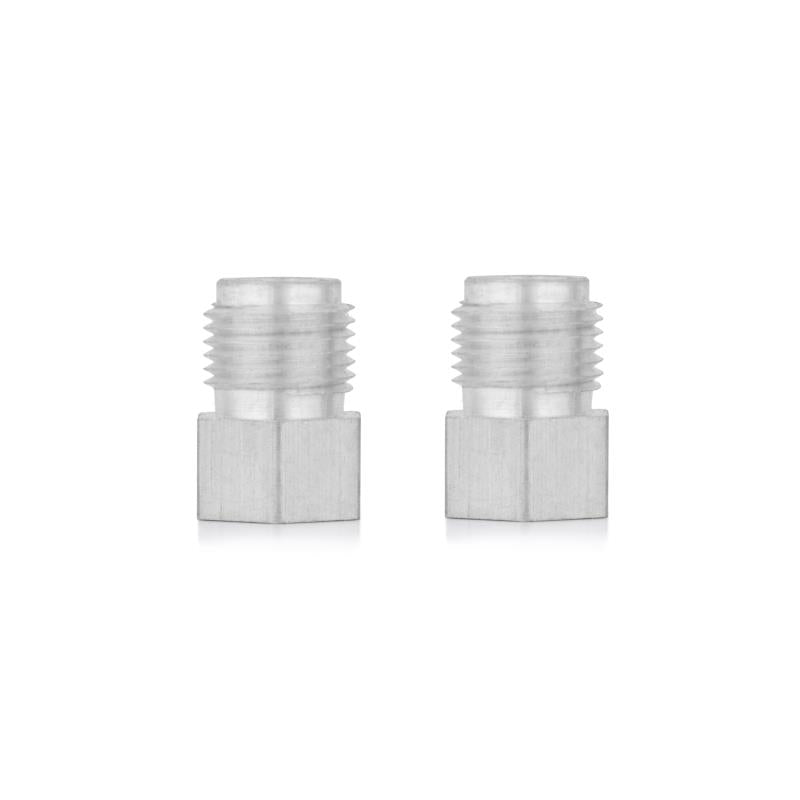

The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle.
Replaces OE Part Numbers: 4C3Z-8005-EB |
| Coolant Capacity | 9.25 |
