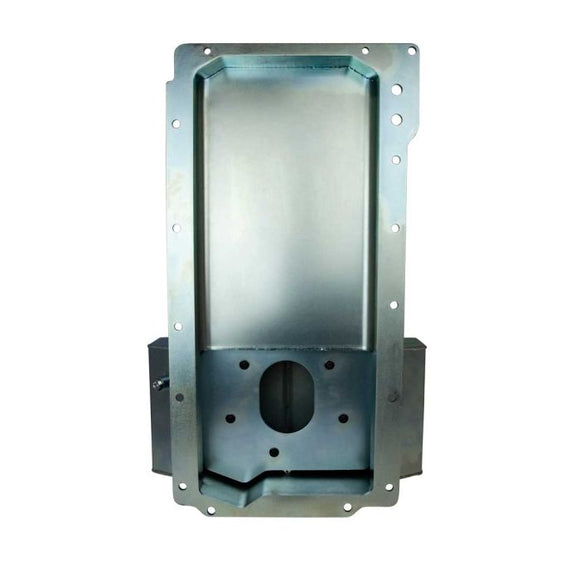

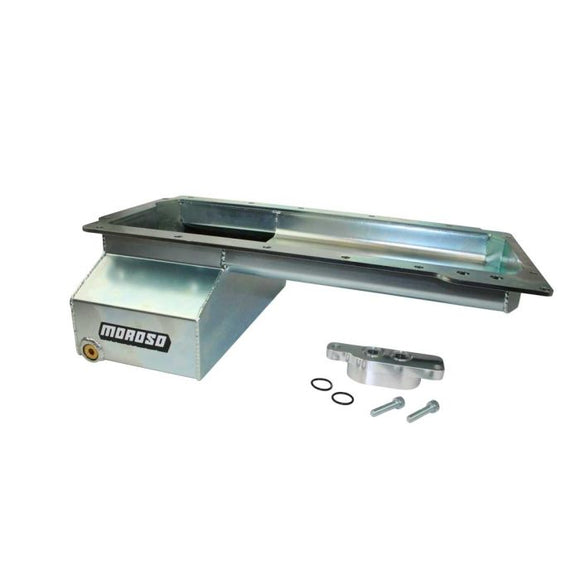

Moroso GM LS Swap (w/Front Sump/Remote Oil Filter Adapter) Wet Sump 6.5qt 6in Steel Oil Pan - Black

20146

Steel, Wet Sump, 6.5 Quart Capacity, 6" Deep, Baffled

Engine Application: GM LS Series

Fits: LS Engine Conversions that require a Front Sump (Check Measurements)

• Oil pan has a thick precision laser cut steel rail with a clear zinc finish
• Clears 4.25" stroke with most steel rods
• Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during Drifting, Road Racing and Drag Racing
• Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
• Accepts GM Part 12558253 Windage Tray with modification
• Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pickup, GM Part 12572654
• Two straight 10AN fittings for remote filter installation
• Dipstick Fitting for required oil pan mounted dipstick
• Magnetic Drain Plug
