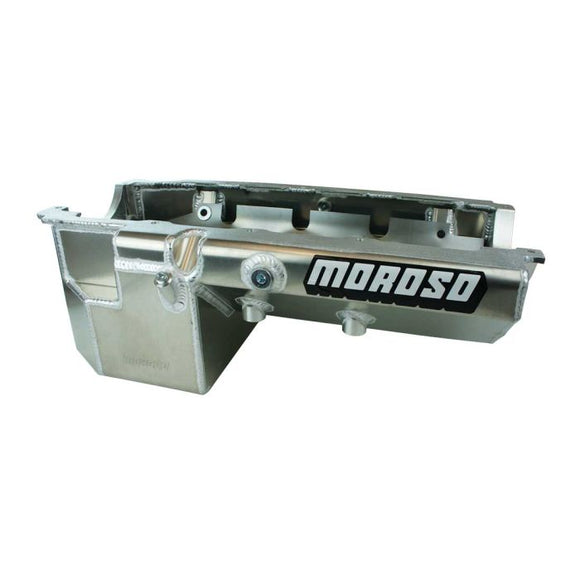

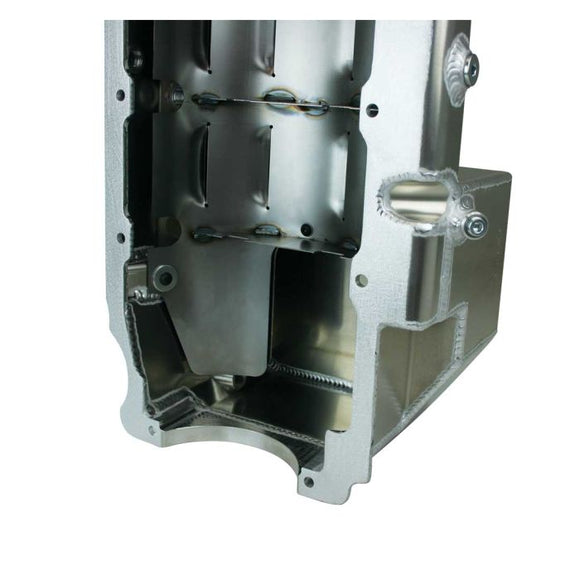

Moroso Chevrolet Big Block Mark IV (w/Double Power Kick Outs) Wet Sump 6-7qt 8in Aluminum Oil Pan

20385

Aluminum, Wet Sump, 7 Quart Capacity, 8" Deep

Engine Application: Mark IV style (except Gen V and Gen VI)

Fits: Fits: Competition Eliminator, Super Gas, Super Comp and Bracket cars. Installation may require modifications to cross-member; check dimensions carefully before ordering

• Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
• Utilizes "race" pan rail bolt pattern
• Double kick-out design ensures large stroke clearance and wide main cap clearance
• Solid louvered windage tray w/main cap partitions for maximum power and oil control
• For use with 168-tooth flywheel combination
• Sump design works with Moroso spur gear and gerotor billet oil pumps
• Features one O-ring magnetic drain plug and two -8AN drainbacks
• Accepts 4.75" stroke with aluminum rods
