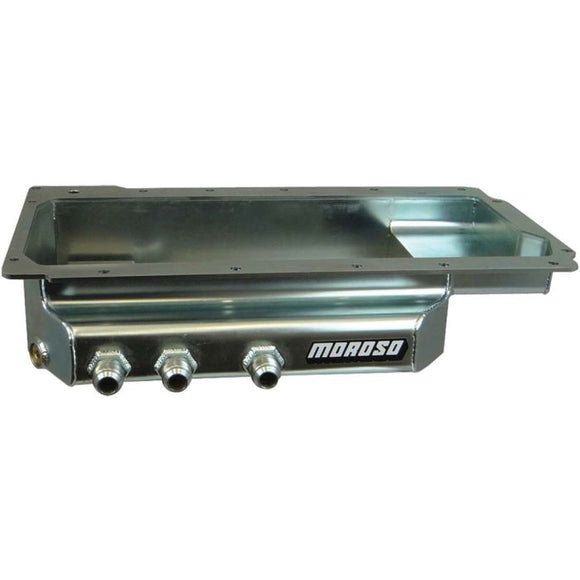

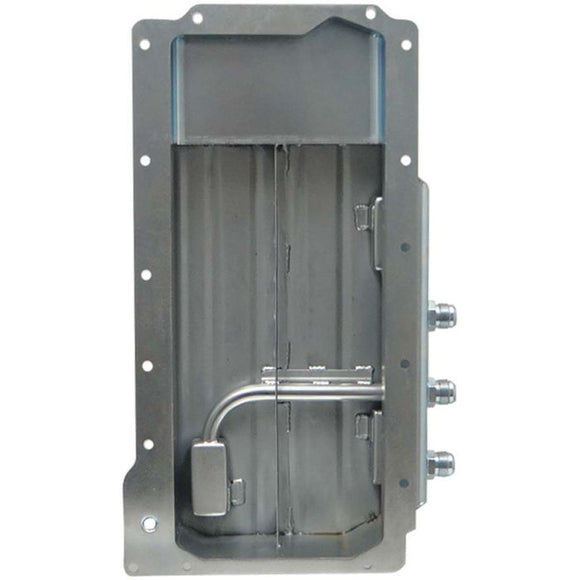

Moroso GM LS (w/Three Right Side Pick Ups) Fabricated Dry Sump 4in Steel Oil Pan

21156

Steel, Dry Sump

Engine Application: GM LS Series

• For GM LS Series Engine Blocks
• Has versatile 3 scavenge 12 AN male pick up design allows the oil pan to be used as a Circle Track or Road Race Oil Pan, would also make an excellent Drag Race or Off Road oil pan
• Oil pan has a 16" thick precision laser cut steel rail with a 14 gauge steel sump to stand up to the toughest racing conditions
• Front of the oil pan is 1 3 4" deep to the beginning of the 4" deep sump
• The sump is 16" long and 10" wide
• Clears 4.25" stroke with most steel rods
• Has a 10 AN male fitting for a oil return
