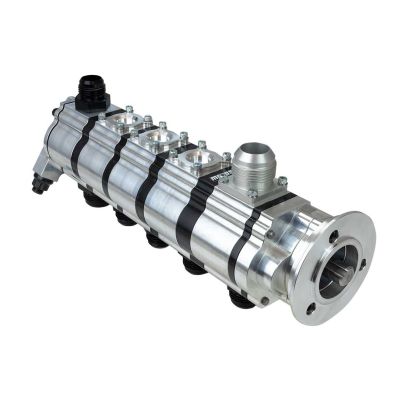

Moroso T3 Series Alston 5 Stage Dry Sump Oil Pump - Tri Lobe - Reverse Rotation - 1.200 Pressure

22517

Updated 1.500" Pressure Section for use with V-Band Mount ProCharger And Alston Supercharger Front Drive assemblies optimized output for 50% drive ratio

• Tri-lobe aluminum scavenge sections featuring individual timing gears to ensure proper clearance at high RPM's
• 1.500 Spur gear pressure section based off Moroso's billet wet sump pump design
• V-band mount available for ProCharger or Alston supercharger front drive assemblies
• Includes multiple spring rates and an adjustable external bypass for ease of adjustment
• Available in standard and reverse rotation configurations
• Includes replaceable fittings; Pressure Section -16AN inlet, -12AN outlet, scavenge -12AN inlet, -16AN return
