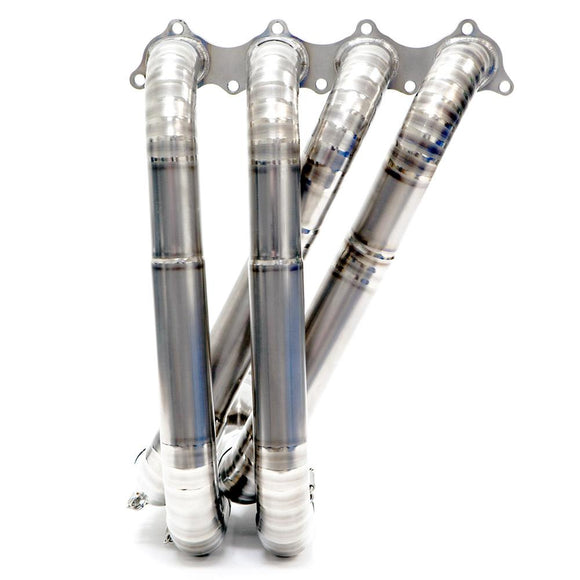

GR1 TI MAX-FLO HEADER - HONDA B-SERIES

BXEX-00501-TI

BLOX Racing is extremely proud to be the 1^st company to offer production titanium headers.

This titanium exhaust header is the twin to our existing Max-Flo design and still offers the same benefits and gains of stepped exhaust tubing by maximizing exhaust flow, widening the powerband and increasing horsepower and torque. BLOX Racing Max-Flo [commonly referred to as ‘big tube’] exhaust headers are specifically intended for Honda B-series with high compression 1.8L set-ups and other builds between 2.0L-2.2L in displacement. Max-Flo  exhaust headers are 2-piece and feature a 4-2-2-1 (Tri-Y) design using innovative stepped exhaust tubing, which are larger when compared to its Hi-Flo little brother.

Even though these titanium headers are based on existing designs, that’s where any similarities end. Each header is constructed out of 100% Grade 1 titanium, the purest form, which offers exceedingly greater amounts of attributes for, particularly, exhaust components and other high performance and racing products.

Each titanium header is handmade and hand TIG-welded. Considering, the expert skill and craftsmanship that goes into each unit ensures that each header is constructed the same way, each and every time. This consistency in production allows for proper fitment and seal against exhaust leaks.

Compared to each of its T304 twin, the titanium version is 58% lighter...58% lighter!

What greater way to showcase our manufacturing capabilities, craftsmanship and unsurpassed product quality by using one of the most exotic materials available.

FOR OFF ROAD USE ONLY

HI-FLOW HEADER SPECS

• Grade 1 titanium material
• 1mm wall thick tubing
• Pairing: cylinders 1&3 / 2&4
• 8mm thick, laser-cut cylinder head flange
• 8mm thick, laser-cut collector flange
• 2100° F max temperature
• Step-up Piping sizes (OD):
  45mm - 50mm - 55mm


MATERIAL ATTRIBUTES

• Purest form of titanium
• Highest strength and density
• Better heat transformation
• Highest ductility
• Excellent corrosion resistance
• Excellent welding properties
• High impact toughness
• Non-magnetic
• Extremely lightweight
