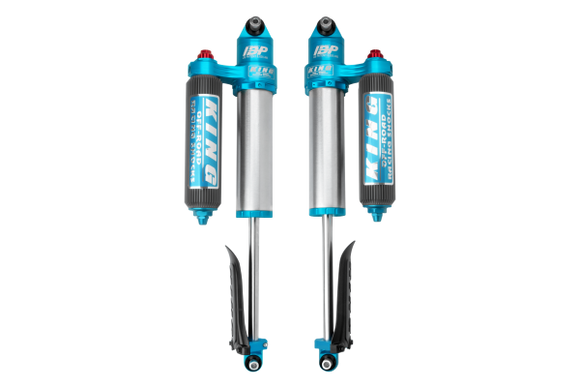

King Shocks 2021+ RAM 1500 TRX Rear 3.5 Race Internal Bypass w/ Finned Res Shock (Pair)

• 100% Bolt-on Performance!
• 100% Noise free operation! (No bypass tube clicking noises!)
• 3.5” diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• Large 1” Diameter Shafts with included Shaft Guards.
• All new mid-port swivel reservoir mounting allows 360° Clocking.
• Patented Internal Bypass Technology.
• King’s 3.5 IBP Internal Bypass shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock.
• King’s monotube design uses a full diameter piston and standard, full size valving.
• Internal Bypass (IBP) shocks have a built-in bump zone for better bottoming control.
• It’s built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves for your TRX.
• Fully rebuildable, serviceable and tunable.
• Standard Option: Finned Reservoir with Compression Adjuster
  • 3.5” OD Pure Race Series External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
  • All new threaded end cap design with new Schrader valve protective cap.
  • Made from extruded 6061-T6 aluminum.
  • Comes standard with King’s 3.0 Wide Range Compression Adjuster that allows for precise compression damping adjustment to further refine your ride quality.
  • Reduces shock cavitation.

Details
Year Make Model: 2021 Ram 1500 TRX
Year Make Model: 2022 Ram 1500 TRX
Year Make Model: 2023 Ram 1500 TRX
Year Make Model: 2024 Ram 1500 TRX
Year Make Model: 2025 Ram 1500 TRX
COMP LENGTH (IN): 21.596
DRIVETRAIN: 4WD
EXT LENGTH (IN): 33.607
GAS PRESSURE (PSI): 250.000
STROKE (IN): 12.011
