6275

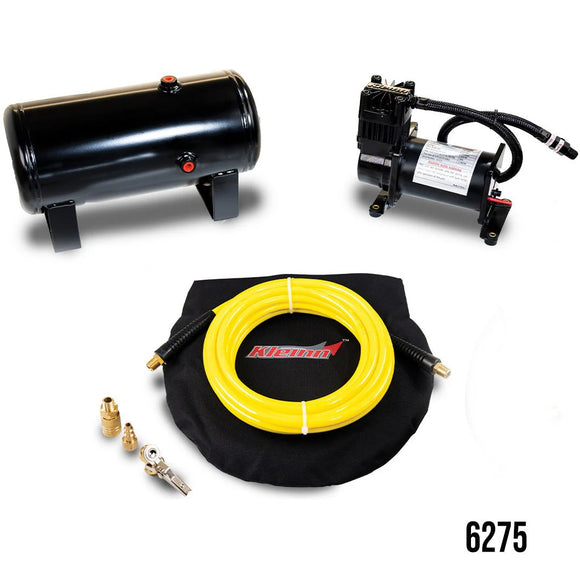

Complete Medium Duty Onboard Air System
A lot of power and higher pressure from a small space. The 6275 delivers the 150 PSI pressure you need to get maximum output from your horns with only a minimum of space. Perfect for frame rail mounting in almost any car! The compressor is sealed and moisture/dust resistant and inlcudes a remote intake filter and a check valve to prolong the life of the compressor.Package Includes:
- 150 PSI compressor
- 1.5 gallon air tank
- 110/145 PSI - 2151 pressure switch
- 175 PSI - 52175 safety valve
- 1/4" NPT drain cock
- 1/4" NPT compression fitting
- Remote mount intake filter
- Mounting brackets & hardware
|
Specifications
|
|
|
Compressor Length (in.)
|
8.50
|
|
Compressor Width (in.)
|
4
|
|
Compressor Height (in.)
|
6.75
|
|
Tank Length (in.)
|
14.25
|
|
Tank Width (in.)
|
5.5
|
|
Tank Height (in.)
|
8
|
|
Tank Capacity
|
1.5 Gallon
|
|
Max Pressure (psi)
|
150
|
|
Pressure Switch Settings (on/off)
|
110/145
|
|
Duty Rating
|
50%
|
|
CFM @ 0 PSI
|
1.7
|
|
Amp Draw
|
20
|
|
Thermal Protection
|
Yes
|
|
Shipping Weight
|
20 lbs
|
