6275RC

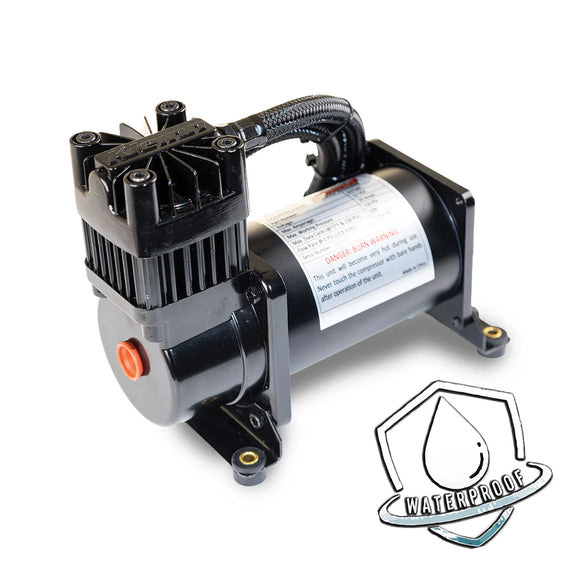

Model 6275RC Fully Submersible Waterproof 150 PSI Medium Duty Air Compressor
Kleinn Automotive offers the first fully submersible 12 volt automotive air compressors on the market. Designed specifically for the off road enthusiast, this medium duty air compressor is capable of running fully submerged under water. Regardless of the terrain or river crossings, this air compressor is ready to take on the elements. The Kleinn engineering team developed the 6275RC air compressor with modified seals & gaskets to make it completely waterproof. The 50% duty-cycle compressor is rated at 150 PSI and includes a snorkel air intake system with filter to locate the air intake up and away from dirt, water and debris insuring years of trouble free service.Replacement compressor for the 6275, HK5, HK6 kits.
- 12-Volt Permanent Magnetic Motor
- 50% Duty Cycle @ 100 PSI
- 150 Max PSI
- 18 Amp Max Draw
- Rated for use with up to 2.5 gallon tank
- Dimensions: 8.25”L x 4”W x 6.25”H
- Flow Rate: 1.56 CFM @ 0 PSI
- Shipping Weight: 9 lbs
Included:
- Installation Instructions
- Mounting Hardware (nuts, bolts, locking washers)
- Vibration Isolators
- Remote Intake "Snorkel System"
- Two Replacement Air Filter Elements
- Air Line for Remote Mount Air Filter Installation
- Stainless Steel Braided Leader Hose
- Check Valve
|
6275RC Performance Data
|
|||||
|---|---|---|---|---|---|
|
PSI
|
CFM
|
A
|
BAR
|
LPM
|
A
|
|
0
|
1.56
|
10
|
0
|
57.5
|
10
|
|
10
|
1.17
|
12
|
1
|
32
|
13
|
|
20
|
1.11
|
13
|
2
|
30
|
14
|
|
30
|
1.04
|
15
|
3
|
28.5
|
16
|
|
40
|
1.01
|
15
|
4
|
26.5
|
16
|
|
50
|
.97
|
16
|
5
|
24.5
|
17
|
|
60
|
.92
|
16
|
6
|
22.5
|
17
|
|
70
|
.88
|
17
|
7
|
21.5
|
18
|
|
80
|
.83
|
17
|
8
|
20
|
18
|
|
90
|
.79
|
17
|
9
|
18.5
|
18
|
|
100
|
.76
|
18
|
10
|
17
|
17
|
|
110
|
.72
|
18
|
*Supply Voltage: 13.8 Volts
|
||
|
120
|
.69
|
18
|
|||
|
130
|
.65
|
18
|
|||
|
140
|
.62
|
17
|
|||
|
150
|
.57
|
17
|
|||
|
6275RC Tank Fill Rates
|
|
|---|---|
|
1 Gallon Tank
|
Fill Rate
|
|
0 - 105 PSI
|
1 Min 5 Sec
|
|
85 - 105 PSI
|
14 Sec
|
|
0 - 145 PSI
|
1 Min 39 Sec
|
|
110 - 145 PSI
|
28 Sec
|
|
2.5 Gallon Tank
|
Fill Rate
|
|
0 - 105 PSI
|
2 Min 29 Sec
|
|
85 - 105 PSI
|
36 Sec
|
|
0 - 145 PSI
|
4 Min 7 Sec
|
|
110 - 145 PSI
|
1 Min 28 Sec
|
