Coil-Over Strut Front 07-11 Mercedes-Benz ML-Class w/o ADS, Incl. AMG 13-22 Land Rover Range Rover, 14-22 Land Rover Range Rover Sport, 18-22 Velar, 17-22 Discovery,

Coil-Over Strut Front 07-11 Mercedes-Benz ML-Class w/o ADS, Incl. AMG 13-22 Land Rover Range Rover, 14-22 Land Rover Range Rover Sport, 18-22 Velar, 17-22 Discovery,

$492.00 CAD

Shipping calculated at checkout

Arnott SKU: SK-3978

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

SK-3978

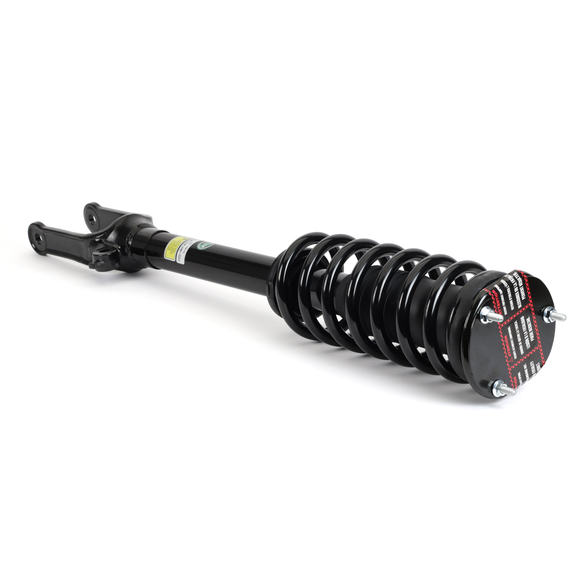

Coil Strut Assembly

Arnotts exclusive coil-over strut design delivers the stability, handling, control and comfort of the original OE strut with out any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs. Note: not for diesel engines

  • Converts active to passive
  • Exclusively for Mercedes-Benz ML-Class w/out ADS, incl AMG
  • Custom-valved shock adapted to driving style
  • Improved seals to prevent leaks
  • Electronic to passive shock technology
  • Engineered and assembled in the USA
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body End Measuring Point: Center Eye
Boot Included: No
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 793.75 (mm)
Dust Shield Included: No
Extended Length: 876.3 (mm)
Gas Charged: No
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Lower Mounting Isolator Included: No
Mounting Hardware Included: No
New Or Remanufactured: New
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: No
Spring Seat Included: No
Springs Included: Yes
Travel Length: 82.55 (mm)
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz ML320 2007-2009
Mercedes-Benz ML350 2007-2011
Mercedes-Benz ML500 2006-2011
Mercedes-Benz ML550 2008-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1643200130 Mercedes-Benz
164320013064 Mercedes-Benz
