TINW1102B

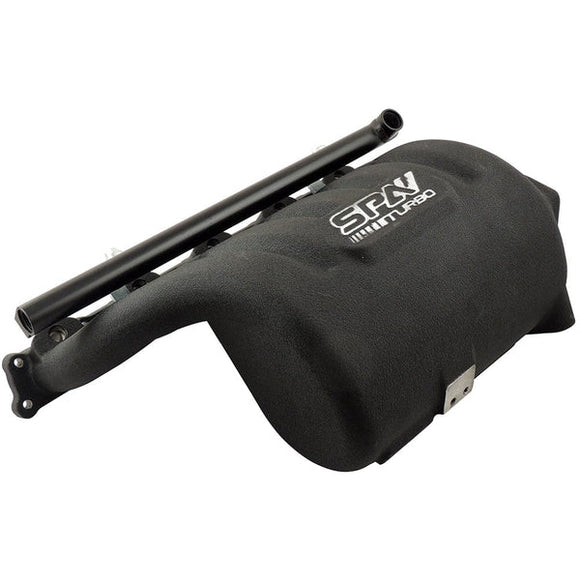

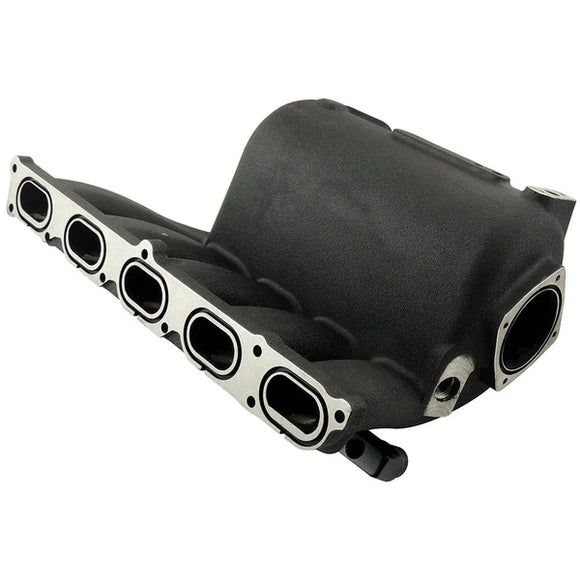

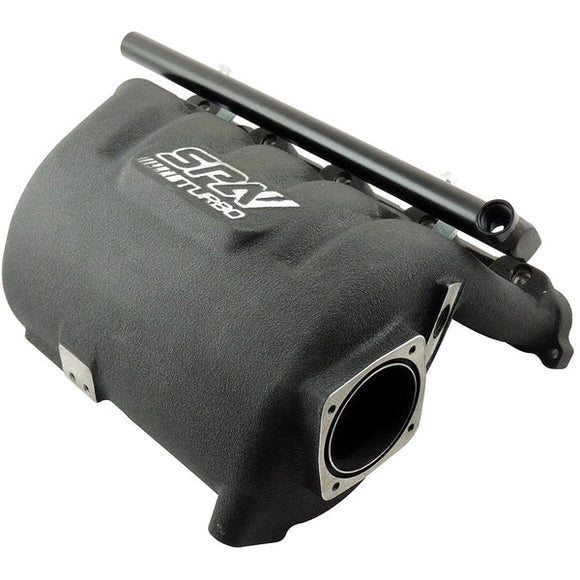

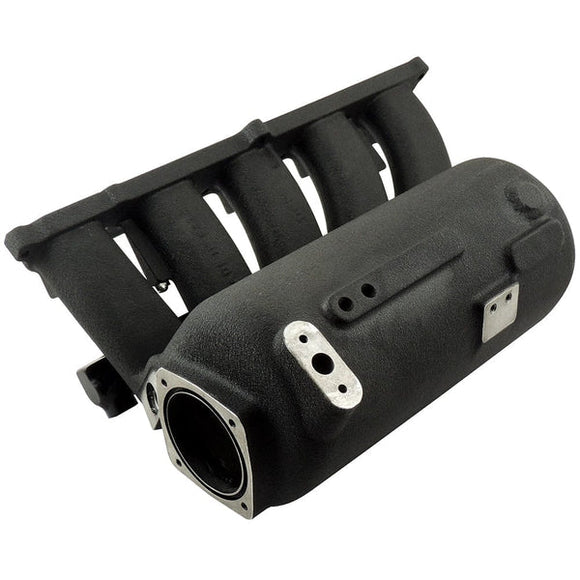

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying!
- Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
- Number of injectors: 5
- Fuel rail: anodized aluminum,
- Fuel rail inlet/outlet: -8AN inlet/outlet
- Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
- Throttle body bolt hole pattern: Stock
- Max working capacity: 10bar (145psi)
- Internal volume: 6,2L
- Material: Cast aluminum
- Compatible with hydraulic and electric steering.
- Includes:
Fitting for stock breather hose (-10AN).
2X 1/8" NPT block off (if vacuum ports are not used).
Oil dipstick holder.
- Compatible with original MAP sensor - ref. 0261230095 (not included).
- Not compatible with the original plastic engine cover.
This part fits the following vehicles
| Make | Model | Submodel | Engine | Drive |
|---|---|---|---|---|
| VW | Golf/GTI Mk5 (2006-2009) | Rabbit | 2.5L | |
| VW | Golf/GTI Mk6 (2010-2014) | Golf | 2.5L | |

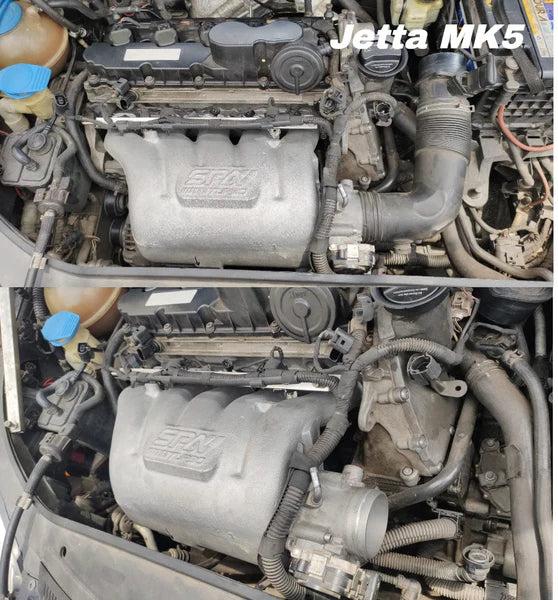

| VW | Mk5 (2006-2010) | Jetta | 2.5L | |
| VW | Mk6 (2011-2014) | Jetta | 2.5L |
